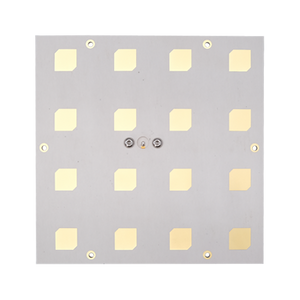

Anywaves’ High Gain X-Band antenna is an ultra-thin antenna used for the payload telemetry subsystem. It downlinks the relevant data from the payload to the ground station and provides high gain in order to enable a high data rate link. This antenna is inferior to 1U with a transmitting gain of 15.5 dBi.
It's the perfect choice if you want to reduce the cost and get more data from your payload!
Anywaves’ High Gain X-Band Payload Telemetry antenna is very compact making it suitable for nanosatellite and LEO platforms. With its narrow beam and low-profile, it provides high-quality single circular polarization and guarantees a very high data rate for the payload telemetry links.
NB : this antenna is compatible with Anywaves Test Cap for X-Bands Antennas
Key Features
- High data rate for payload data downlink (< 1U and ultra-thin)
- Radome protection against harsh environment
- Acceptance Test included
- ITAR Free
- Test Cap Compatible
| Parameter | Value |
|---|---|
| Dimensions | 100 x 100 x 6.5 mm^3 |
| Height | 16 mm (with connector) |
| Mass | 70 g (+/- 7g) |
| Frequency Range | 7.9 GHz to 8.5 GHz |
| Bandwidth | 600 MHz |
| Polarization | Right Hand Circular Polarization |
| Polarization | Left Hand Circular Polarization |
| Qualification Temperature | -120C to +120C |
| Lead Time | 3 Months |
| Regulatory | ITAR Free |
- High data rate for payload data downlink (< 1U and ultra-thin)
- Radome protection against harsh environment
- Acceptance Test included
- ITAR Free
- Test Cap Compatible
Anywaves’ High Gain X-Band antenna is an ultra-thin antenna used for the payload telemetry subsystem. It downlinks the relevant data from the payload to the ground station and provides high gain in order to enable a high data rate link. This antenna is inferior to 1U with a transmitting gain of 15.5 dBi.
It's the perfect choice if you want to reduce the cost and get more data from your payload!
Anywaves’ High Gain X-Band Payload Telemetry antenna is very compact making it suitable for nanosatellite and LEO platforms. With its narrow beam and low-profile, it provides high-quality single circular polarization and guarantees a very high data rate for the payload telemetry links.
NB : this antenna is compatible with Anywaves Test Cap for X-Bands Antennas
Key Features
