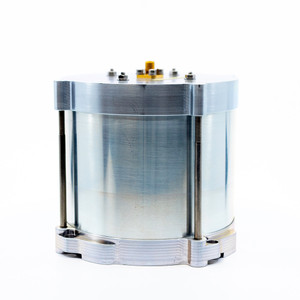

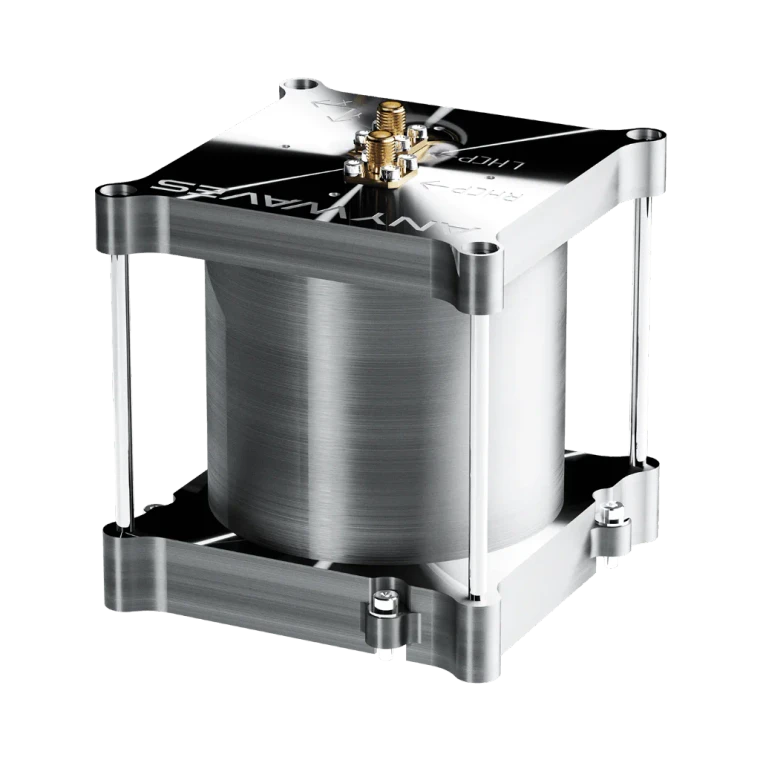

The Anywaves Test Hat for X-Band Antennas enables complete end-to-end RF testing of the X-Band payload downlink antenna and transmitter chain directly on the satellite platform, from assembly bench to final TVAC testing. Covering the 8–8.4 GHz X-Band data downlink range with a coupling factor of approximately −27 dB, it eliminates the need for anechoic chamber measurements during integration — saving time and cost while delivering reproducible RF measurements at every stage of the AIT campaign.
Its 100 × 100 mm square base matches the footprint of all Anywaves X-Band antennas. Captive M3 screws are provided, screwing directly into the antenna interface with no additional hardware. TVAC compatible to +85°C with low outgassing. Compatible with LHCP and RHCP, covering the full range of X-Band antenna configurations. Low RF leakage protects operators during the test. 615 g. ITAR Free.
Key Features
- X-Band RF test — no anechoic chamber needed
- TVAC compatible to +85°C
- Captive screws provided — no additional hardware
- Compatible with LHCP and RHCP — full X-Band family
- Low RF leakage — safe for operators
- ITAR-free
| Parameter | Value |
|---|---|
| Lead Time | 2 weeks |
| Mass | 615 +/- 5% |
| Dimensions | 100.2 x 100.2 x 106.2 mm |
| Frequency Range | From 7.9 to 8.5 GHz |
| Bandwidth | 600 MHz |
| Polarization | Right and/or Left Hand Circular Polarization |
| Reflection Coefficient | < -15 dB (at Antenna Port) |
| Reflection Coefficient | < -12 dB (at Test-Hat Port) |
| RF Power | 10 W |
| Mechanical Interface | 4 x M3 (unthreaded hole) |
| Connector | Coaxial SMA female (50 Ω) |
