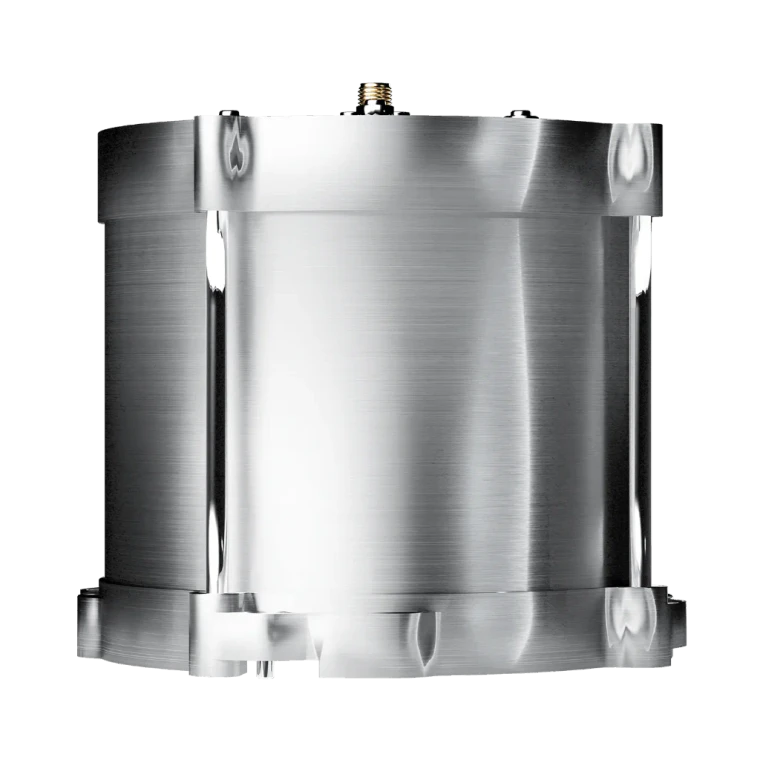

The Anywaves Test Hat for GNSS All-Bands Antennas enables complete end-to-end RF testing of the GNSS All-Bands Antenna and receiver chain directly on the satellite platform. By providing a stable −29 dB coupling across the full 1.16–1.61 GHz GNSS band, it replaces the need for anechoic chamber measurements during integration testing, saving time and cost while maintaining the measurement quality required to demonstrate full RF chain performance.
Its single-part, screwed design mounts directly on the antenna with an oriented slot for repeatable positioning — no bracket, no tools, no risk of antenna damage. TVAC compatible with low outgassing, it can be used across all AIT phases without removal. Low RF leakage protects operators during testing. Compatible with all GNSS All-Bands Antenna variants (standard, with LNA, L1/E1). ITAR Free.
Key Features
- End-to-end RF test — no anechoic chamber needed
- TVAC compatible for all AIT phases
- Single-part — screws directly on the antenna
- Flat coupling across all GNSS bands
- Low RF leakage — safe for operators
- ITAR-free
| Parameter | Value |
|---|---|
| Lead Time | 2 weeks |
| Dimensions | 118.8 mm dia. x 96.3 mm depth |
| Mass | 915 g (+/- 5 g) |
| Frequency Bands | 1160 MHz to 1610 MHz |
| Bandwidth | > 450 MHz |
| Polarization | Right Hand Circular Polarization |
| Qualification Temperature | -40C to +70C |
| Regulatory | ITAR Free |
| Type | Document Name | Action & Size |
|---|---|---|
| No public documentation available. Please inquire for details. | ||
