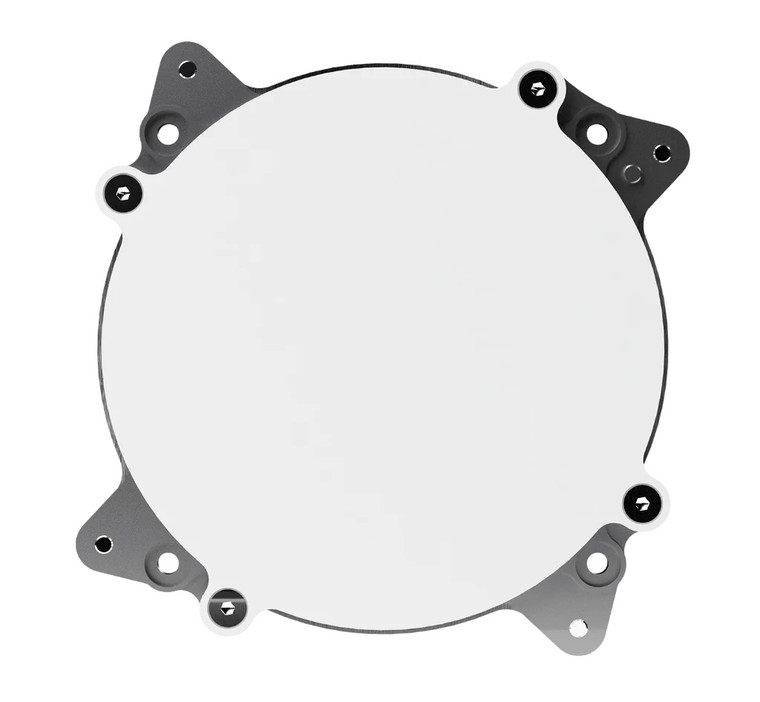

The Anywaves GNSS All-Bands Antenna is the only antenna on the market capable of receiving all GNSS constellations simultaneously — GPS, Galileo, GLONASS, BeiDou, IRNSS, QZSS — from a single 99.4 × 99.4 mm aperture. Developed under ESA's NAVISP programme, it provides the signal diversity needed for precise, resilient satellite positioning without the risk of signal blackouts if one constellation becomes unavailable. It is the reference choice for LEO missions requiring high-accuracy on-board navigation.
Its phase center is stable within a sphere of radius <4.7 mm across all bands and <1.8 mm within individual sub-bands (±30° FoV), with an elevation variation below 0.4 mm within ±30° — the key performance criterion for GNSS navigation accuracy. At 130 g with a protruding height of 8.7 mm, it fits within any 1U CubeSat surface. RHCP polarization, PEEK Radome with anti-ESD coating, Test Hat compatible, full acceptance testing on flight models. ITAR Free.
NB : this antenna is compatible with Anywaves Test Cap for GNSS All-Bands Antennas
Key Features
-
- Full GNSS coverage: Supports all major GNSS constellations and L-band services for high-precision positioning(PPP).
- No signal blackout if one nav constellation is unavailable
- ESA NAVISP developed — unique on the market
- Very stable phase center — high nav accuracy
- Full acceptance testing included
- Robust design: Radome protection ensures reliable operation in harsh environments (temperature, ESD).
- ITAR Free — worldwide delivery
Included Services
-
- Complete EIDP (End Item Data Package)
- In-Depth Engineering Support
- Further Testing Available On Demand
- Specific Requests Analysis With Experts
| Parameter | Value |
|---|---|
| Dimensions | 99.4 x 99.4 x 15.2 mm^3 |
| Protruding Height | 8.7 mm |
| Mass | 130 g |
| Connector | Coaxial SMA femal 50 Ω |
| Frequency Range | 1160 MHz to 1610 MHz |
| Frequency Range | 1525 - 1559 MHz (Inmarsat L-band) |
| Polarization | Right Hand Circular Polarization |
| Qualification Temperature | -120C to +120C |
| Mechanical Interface | 4x M3 (unthreaded hole) |
| Lead Time | 1 months |
| Regulatory | ITAR Free |
