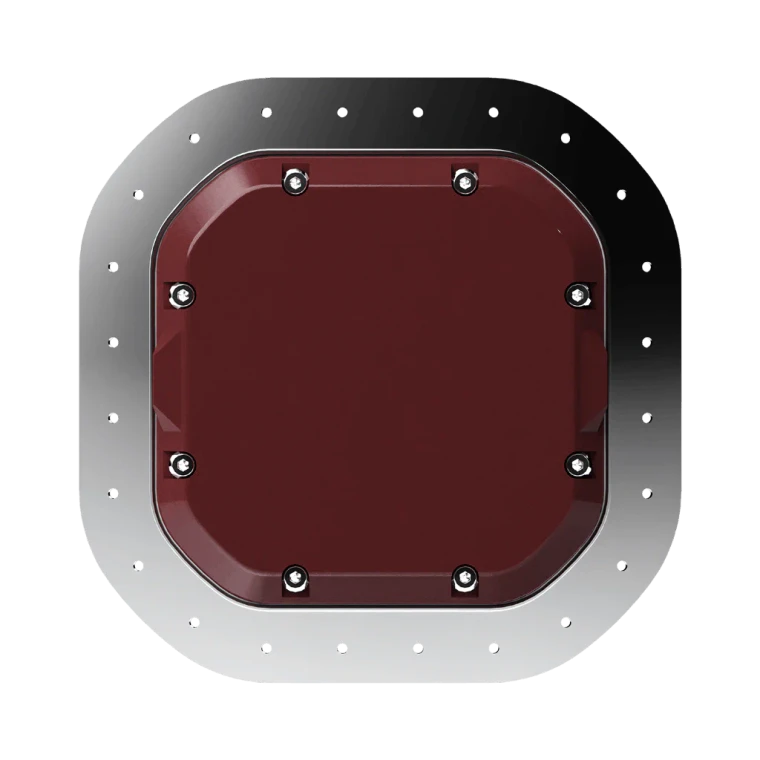

The Anywaves GNSS All-Bands Launcher Antenna is the only antenna on the market providing full multi-constellation GNSS reception — GPS, Galileo, GLONASS, BeiDou — from a single unit specifically designed for launch vehicles. It covers the full 1.16 to 1.61 GHz range with a highly stable phase center, providing the signal diversity and positioning precision required for accurate trajectory management throughout all launch phases.
Derived from the Anywaves GNSS All-Bands Antenna, it is adapted for the extreme thermal and mechanical demands of the launch environment with a dedicated thermal shield in place of the standard satellite Radome. At 150 × 150 × 30 mm, it integrates within space-constrained launcher body designs. RHCP polarization, acceptance tests included on flight models. Compatible with the Anywaves Test Hat for GNSS All-Bands Antennas. ITAR Free.
Key Features:
-
- The only all-bands GNSS antenna for launchers
- All constellations — no signal blackout risk
- Thermal shield for liftoff & ascent conditions
- Stable phase center — precise trajectory navigation
- Acceptance testing included at antenna level
- ITAR Free — worldwide delivery
Included Services
-
- Complete EIDP (End Item Data Package)
- In-Depth Engineering Support
- Further Testing Available On Demand
- Specific Requests Analysis With Experts
| Parameter | Value |
|---|---|
| Lead Time | 6 to 12 months (contact us for shorter lead time) |
| Envelope size | 150 × 150 × 30 mm |
| Frequency Range | 1 160 MHz to 1 610 MHz |
| Frequency Band | GPS L1/L2/L5 |
| Frequency Band | Galileo E1/E5a/E5b/E6 |
| Frequency Band | GLONASS G1/G2/G3 |
| Frequency Band | BeiDou B1/B2a/B2/B3 |
| Polarization | Right Hand Circular Polarization (RHCP) |
| Type | Document Name | Action & Size |
|---|---|---|
| No public documentation available. Please inquire for details. | ||
