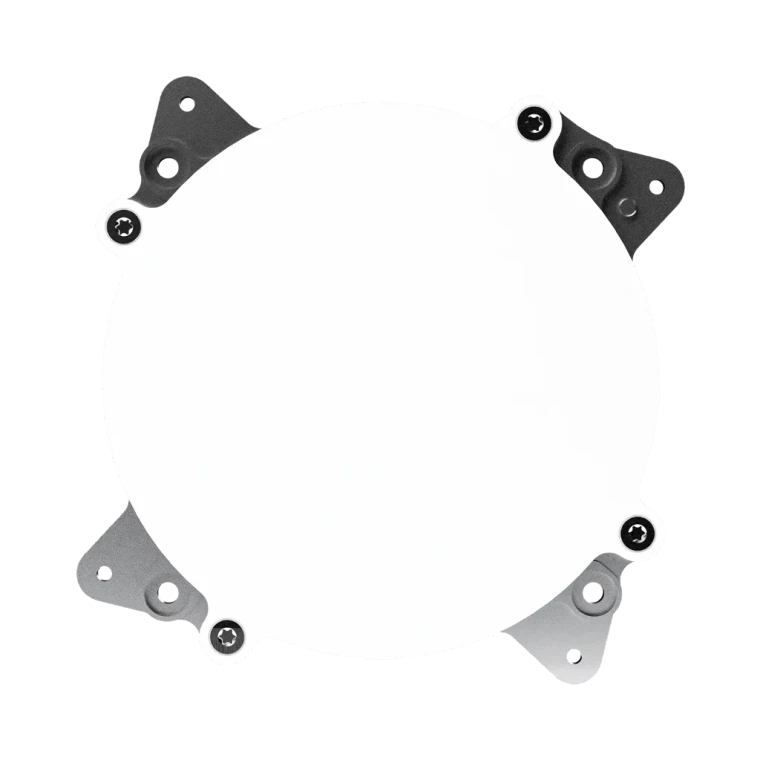

The Anywaves GNSS All-Bands Antenna with LNA Integrated Board is the active evolution of the GNSS All-Bands Antenna. It combines full multi-constellation coverage (1.16–1.61 GHz — GPS, Galileo, GLONASS, BeiDou, INMARSAT L-band) with an integrated LNA that amplifies the signal at the antenna itself, before any cable loss can degrade the noise figure. This simplifies spacecraft RF architecture, reduces the component count, and maximises GNSS receiver sensitivity from first principles.
An integrated S-Band filter provides strong rejection of onboard S-Band signals, removing a common source of RF interference without requiring an external filter component. At 99 × 99 mm and 285 g, it fits on any LEO satellite platform in a <1U footprint. Designed for a 7-year orbit lifetime with full radiation qualification (40 krad TID, 62.5 MeV-cm²/mg SEE). RHCP polarization. PEEK Radome with anti-ESD coating. Compatible with the Anywaves Test Hat for GNSS All-Bands Antennas. ITAR Free.
Key Features:
-
- LNA embedded in the antenna chassis — reduced noise contribution induced by cable loss at first stage
- All GNSS constellations in a single unit
- Integrated S-Band filter — no external filter needed
- Radiation-qualified for 7-year LEO missions
- Full acceptance testing included
- ITAR Free — worldwide delivery
Included Services
-
- Complete EIDP (End Item Data Package)
- In-Depth Engineering Support
- Further Testing Available On Demand
- Specific Requests Analysis With Experts
| Parameter | Value |
|---|---|
| Lead Time | 1 month |
| Envelope Size | L 100 x W 100 x H 58 mm3 |
| Mass | 285g ± 10% |
| Frequency Range | 1 160 MHz to 1 610 MHz |
| Frequency Band | GPS L1/L2/L5 |
| Frequency Band | Galileo E1/E5a/E5b/E6 |
| Frequency Band | Glonass G1/G2/G3 |
| Frequency Band | Beidou B1/B2a/B2/B3 |
| Type | Document Name | Action & Size |
|---|---|---|
| No public documentation available. Please inquire for details. | ||
