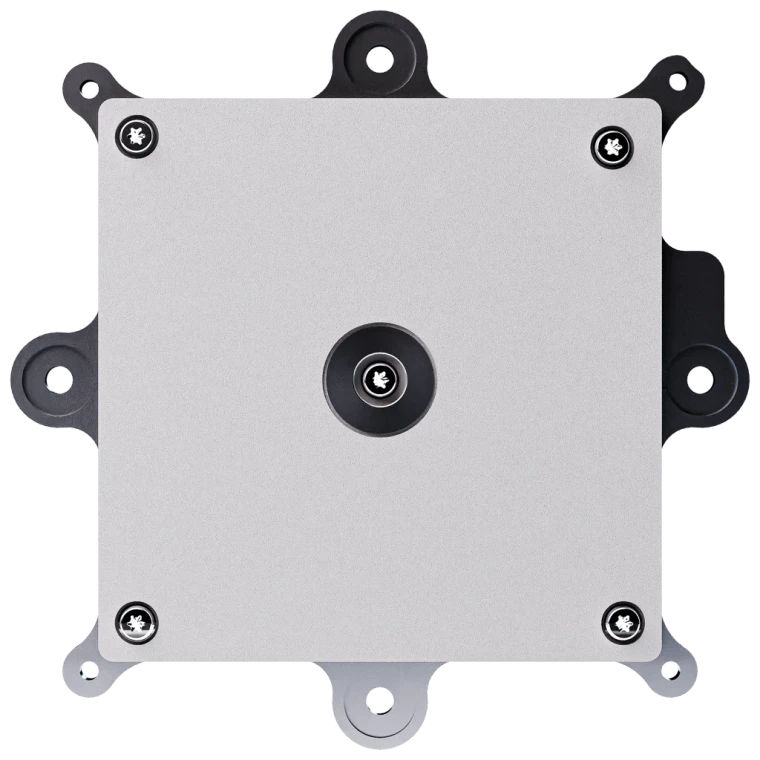

The Anywaves GNSS L1/E1 Bands Antenna is the latest-generation single-band navigation antenna from Anywaves, designed for LEO platforms requiring high-accuracy GPS L1 and Galileo E1 positioning. With a realized gain exceeding 6.5 dBi at boresight and a phase center variation within a sphere of radius less than 1 mm across the full band, it delivers the signal quality and positioning precision required for precise orbit determination and timing applications.
Its compact 96.6 × 96.6 mm footprint, 103 g mass and protruding height of less than 8 mm make it easy to integrate on any LEO satellite panel. RHCP polarization, reflection coefficient better than −18 dB, axial ratio below 1 dB at boresight. PEEK Radome with anti-ESD coating, qualification temperature −120°C to +120°C. Compatible with the Anywaves Test Hat for GNSS Antennas. Full acceptance testing on flight models. ITAR Free.
Key Features:
-
- > 6.5 dBi — highest L1/E1 gain for precise positioning
- Phase center variation <1 mm sphere — precise orbit determination
- Full hemispherical coverage HPBW > 90°
- 103 g / size <1U — easy integration on any platform
- Full acceptance testing included
- ITAR Free — worldwide delivery
Included Services
-
- Complete EIDP (End Item Data Package)
- In-Depth Engineering Support
- Further Testing Available On Demand
- Specific Requests Analysis With Experts
| Parameter | Value |
|---|---|
| Lead Time | 1 month |
| Envelope Size | L 96.6 x W 96.6 x H 23.26mm3 |
| Protruding Height | <8 mm |
| Mass | 103 g (With Connector) |
| Frequency Band | GPS L1: 1563 to 1587 MHz |
| Qualification Temperature | - 120°C / + 120°C |
