GNSS-701 - Satellite GNSS Receiver

The flight proven GNSS-701 Satellite GNSS (Global Navigation Satellite System) Receiver is an upgraded version of our GPS12-V1, one of AAC SpaceQuest’s bestselling components of all time.

Our compact yet powerful next-generation GPS-701/702 Satellite GNSS Receiver has an improved core and an expanded interface card improving the component’s available features, accuracy, and compatibility, while still relying on the foundation of a proven design with over a decade of heritage.

Our GNSS-701 is used to determine accurate determination of orbital position of the satellite, orbit maneuvers to enabling accurate knowledge of time.

Our AAC SpaceQuest GPS receivers have been used on missions such as AprizeSats 1, 2, 3, 4, 5, 8 and 10, Genesis 1, 2 (Bigelow Aerospace), exact-View 5, 6, and 11 (exactEarth), M-SAT (Univ. of Missouri), FalconSat-5 and 6 (USAFA), FASTSat (NASA MSFC), and many more.

Reliability

Flight proven across multiple mission applications for a range of customer requirements this readily available solution has inherited advanced error detection and correction.

Performance

The space qualified GNSS-701 functions with low power consumption to achieve high performance, up to 1Hz Pulse Per Second Output.

Heritage

This solution has over a decade of heritage. AAC SpaceQuest has delivered over 42 GPS receivers, of which 18 have launched to date.

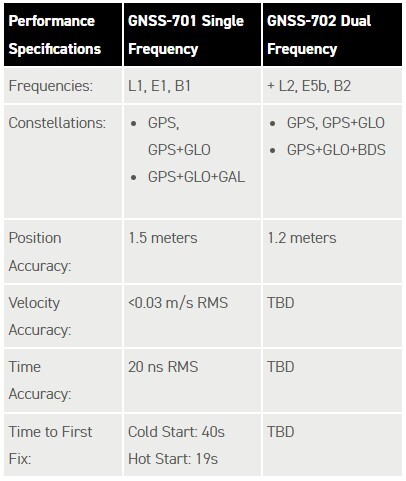

Why the GNSS-701?

• • TRL 9
  • 16 Week Lead Time
  • Flown Since 2009
  • 120 Channel GNSS Receiver
  • Fast Time to First Fix
  • < 5m Position Accuracy
  • < 0.10 m/s Velocity Accuracy
  • 1Hz Pulse Per Second Output
  • Build Time Interface Options
  • Tracks GPS, GLONASS, Galileo, and BeiDou
