Pumpkin Motherboard Module 2 (MBM 2)
Pumpkin Space Systems
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.

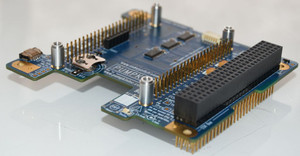

The Motherboard Module (MBM) is part of the CubeSat Kit™ nanosatellite architecture. This is flight hardware (blue). By adding a Pluggable Processor Module (PPM) to the MBM, you create a low-power, 8- or 16-bit MCU/DSC C&DH module for your CubeSat. An MBM + PPM occupies a standard 0.600" (15.24mm) tall module slot, typically at the base of a Pumpkin CubeSat Kit™ structure. The MBM routes the MCU/DSC's I/O pins to the 104-pin CubeSat Kit bus, and provides an RBF switch, an external +5Vdc power input, a USB device port, a battery-backed RTC subsystem, an SPI-interface SD Card, an extra power header, and +5V and GND for use by PC/104 connectors.
Motherboard Module
| Parameter | Value |
|---|---|
| Max Operating Voltage [V] | 5.5 |
| Operating Temperature [ºC] | -40 to +85 |
| Integrated Peripherals | Backup battery; USB 2.0 for pre-flight; MMC/SD for storage |
| Interface | MB 2 Stack |
| Interface | MHX Tx/Rx |
| Interface | PC/104 |
| Interface | I2C |
| Type | Flight Hardware |
| Mass | 77 g |
| Interface | I/O pins |
| Interface | USB |
The Motherboard Module (MBM) is part of the CubeSat Kit™ nanosatellite architecture. This is flight hardware (blue). By adding a Pluggable Processor Module (PPM) to the MBM, you create a low-power, 8- or 16-bit MCU/DSC C&DH module for your CubeSat. An MBM + PPM occupies a standard 0.600" (15.24mm) tall module slot, typically at the base of a Pumpkin CubeSat Kit™ structure. The MBM routes the MCU/DSC's I/O pins to the 104-pin CubeSat Kit bus, and provides an RBF switch, an external +5Vdc power input, a USB device port, a battery-backed RTC subsystem, an SPI-interface SD Card, an extra power header, and +5V and GND for use by PC/104 connectors.
Motherboard Module
