Expedite Sequencer - Remos Space Systems - SmallSat Catalog - Orbital Transports

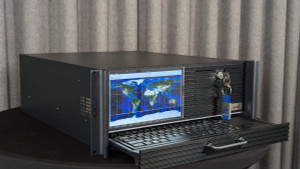

Expedite Sequencer

The Expedite Sequencer is a high-tech system for optimizing and managing satellite signal transmission. Central to its operation is an embedded computer equipped with Ethernet, digital inputs/outputs, and a network of RF switches, amplifiers, and sensors. This computer coordinates all components, ensuring seamless integration and remote control. An embedded LCD screen provides real-time sensor readings and alerts, aiding in system monitoring. The Expedite Sequencer can also be controlled automatically and remotely via the Expedite Transceiver, allowing efficient signal management from any location without on-site supervision.

KEY FEATURES

  • Transmission Power: Up to 100 Watts (UHF/VHF),  Up to 50 Watts (S-band)
  • RF Switches: Mechanical
  • Sequencing mode: Automatic
  • Connectivity: SSH, REST API, Modbus
Specifications
Lead Time:
8 to 12 weeks
Form Factor:
4U
Dimensions:
482.6 x 177 x 425 mm
Mass:
12 Kg
Operating Temperature Range:
10C to 40C
Storage Temperature Range:
-20C to 70C
Humidity:
10% to 90% non-condensing
Cooling:
Forced air cooling with side-to-back airflow
Mounting:
Standard 19-inch rack-mountable
Interface:
1x Ethernet, Realtek 2.5Gb
Interface:
2x USB 3.2
Control Interfaces:
SSH, REST API, Modbus
Display Interface:
Integrated Touchscreen LCD
