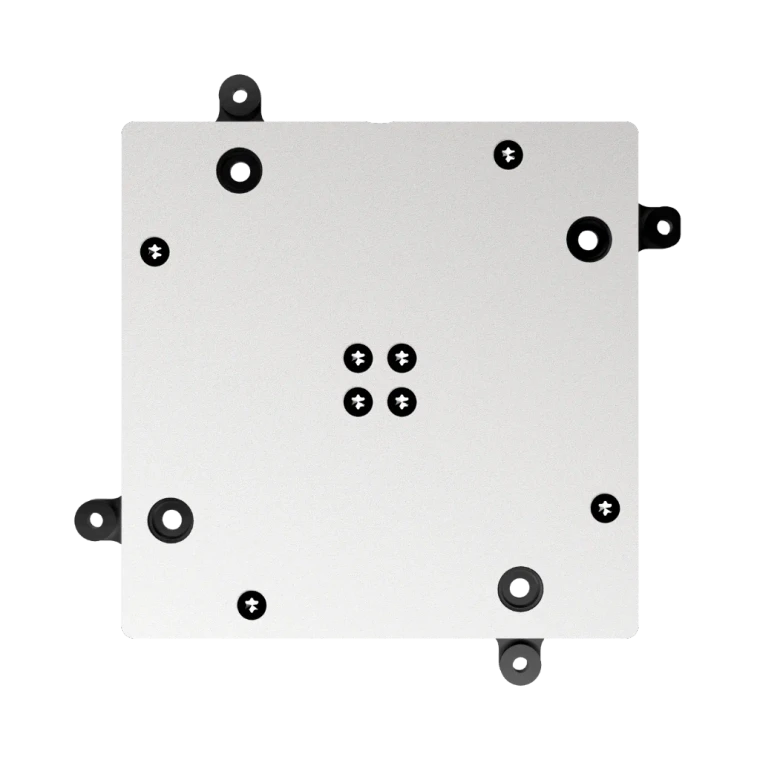

The Anywaves Wide Beam X-Band Antenna provides payload telemetry downlink across a wider field of view than the Compact X-Band Antenna. Operating from 8.025 to 8.4 GHz with a Half Power Beam Width of approximately 86°, it maintains a gain above −1 dBi across a ±60° cone — ensuring reliable downlink performance even at significant off-boresight angles during LEO passes. It is the right choice for platforms that cannot guarantee precise nadir or ground-station pointing at all times.
At 100 × 100 mm and approximately 68 g, it fits within a 1U CubeSat face and is mechanically interchangeable with the Compact X-Band Antenna at the panel interface level. Available in LHCP or RHCP, protected by a PEEK radome with anti-ESD coating, compatible with the Anywaves Test Hat for X-Band Antennas, and supplied with full acceptance testing on flight models. ITAR Free.
Key Features:
-
-
~86° beam width — wide coverage downlink
-
No attitude constraint for X-Band downlink
-
ITAR FREE
-
ESD-free PEEK radome included
-
Full acceptance testing included
-
Worldwide delivery
-
Included Services
-
- Complete EIDP (End Item Data Package)
- In-Depth Engineering Support
- Further Testing Available On Demand
- Specific Requests Analysis With Experts
| Parameter | Value |
|---|---|
| Lead Time | 6 to 12 months (contact us for shorter lead time) |
| Envelope Size | L 100 x W 100 x H 6.5 mm3 |
| Height | 16.2 mm (with connector) |
| Mass | 70 g ± 7 g (With Connector) |
| Frequency Band | From 8.025 to 8.4 GHz |
| Bandwidth | 375 MHz |
| Realized Gain@8.2 GHz | Gain @ boresight > 5.0 dBi |
| Realized Gain@8.2 GHz | Gain @ ± 30° > 4.0 dBi |
| Realized Gain@8.2 GHz | Gain @ ± 60° > -1.0 dBi |
| Qualification Temperature | - 120°C / + 120°C |
| Type | Document Name | Action & Size |
|---|---|---|
| No public documentation available. Please inquire for details. | ||
