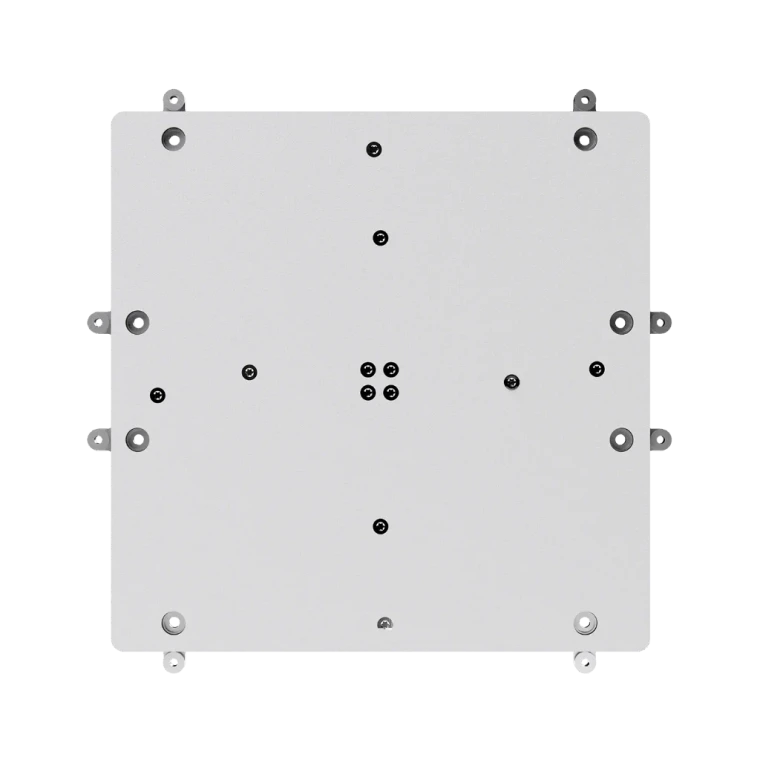

The Anywaves High Gain X-Band Antenna exceeds 20 dBi of realized gain at 8.2 GHz — 5 dBi more than the Compact X-Band Antenna — through a 200 × 200 mm aperture that focuses all RF energy into a narrow 9° pencil beam. This gain level enables higher data rates with respect to the Anywaves Compact X-Band antenna, making it the right choice for Earth observation missions with large or high-resolution payloads generating large data volumes that must be downloaded within short LEO pass windows.
The antenna operates from 7.9 to 8.5 GHz (600 MHz bandwidth) in LHCP or RHCP, with a reflection coefficient better than −18 dB and an axial ratio below 1 dB at ±5°. Protected by a PEEK Radome with anti-ESD coating, it maintains a low 16 mm profile with less than 8 mm of protrusion. Compatible with the Anywaves Test Hat for X-Band Antennas. Full acceptance testing on flight models. ITAR Free.
NB : this antenna is compatible with Anywaves Test Cap for X-Bands Antennas
Key Features
-
-
Key fact 1 > 20 dBi — high gain in the X-Band range
-
~9° pencil beam for maximum throughput
-
600 MHz bandwidth across 7.9–8.5 GHz
-
PEEK radome — thermal & ESD protected
-
Full acceptance testing included
-
ITAR Free — worldwide delivery
-
Included Services
-
- Complete EIDP (End Item Data Package)
- In-Depth Engineering Support
- Further Testing Available On Demand
- Specific Requests Analysis With Experts
| Parameter | Value |
|---|---|
| Dimensions | 200 x 200 x 16 mm^3 |
| Protruding Height | <8 mm (without connector) |
| Mass | 503g (+/- 20%) |
| Frequency Range | 7.9 GHz to 8.5 GHz |
| Bandwidth | 600 MHz |
| Realized gain | > 20 dBi @ boresight @ 8.2 GHz |
| Polarization | LHCP or RHCP |
| Qualification Temperature | -120C to +120C |
| Lead Time | 6 to 12 Months (contact us for shorter lead time) |
| Regulatory | ITAR Free |
| Type | Document Name | Action & Size |
|---|---|---|
| No public documentation available. Please inquire for details. | ||
