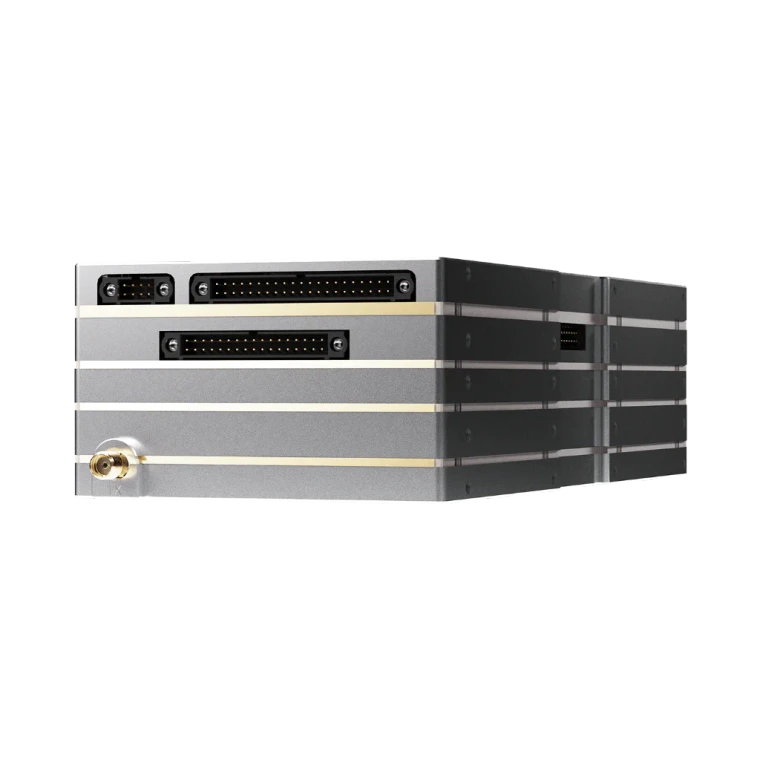

The VILSA XDL is a high-speed X-band downlink transmitter designed for high-throughput payload data transfer in demanding space missions. Optimized for payload downlink applications, it combines high RF output power with DVB-S2X adaptive modulation (up to APSK 32/64) to maximise the total volume of data transferred during each ground-station pass, from acquisition of signal to loss of signal.
The VILSA XDL leverages the same proven architectural foundations as the broader VILSA product family, benefiting from shared design heritage and validated building blocks. This approach provides long-term product continuity and a clear evolution path toward future X-band and multi-band downlink and uplink solutions, while preserving a fixed, fully qualified product definition aligned with current mission requirements.
Key Features:
-
- Maximised data transfer per ground‑station pass
- DVB‑S2X standard support
- High‑power X‑band transmission
- Flight‑qualified X‑band downlink transmitter
- Product platform designed for long‑term evolution
- ITAR-free
Included Services
-
- Complete EIDP (End Item Data Package)
- In-Depth Engineering Support
- Further Testing Available On Demand
- Specific Requests Analysis With Experts
| Parameter | Value |
|---|---|
| Lead Time | 6 to 12 months (contact us for shorter lead time) |
| Frequency band | X-Band — 8.025 to 8.400 GHz |
| Transmit power | Configurable from +28 to +38 dBm |
| Data rate | Up to 800 Mbps (using APSK 32/64) |
| Supported standard | DVB‑S2X with adaptive modulation |
| Dimensions | XDL: 88 × 55 × 210 mm |
| Dimensions | Deep-space filter: 180 × 32 × 120 mm |
| Mass | XDL: ≈ 1,375 g |
| Mass | Deep-space filter: ≈ 400 g |
| Operating environment | >5-year lifetime in LEO — 18 krad TID — −20°C to +50°C |
