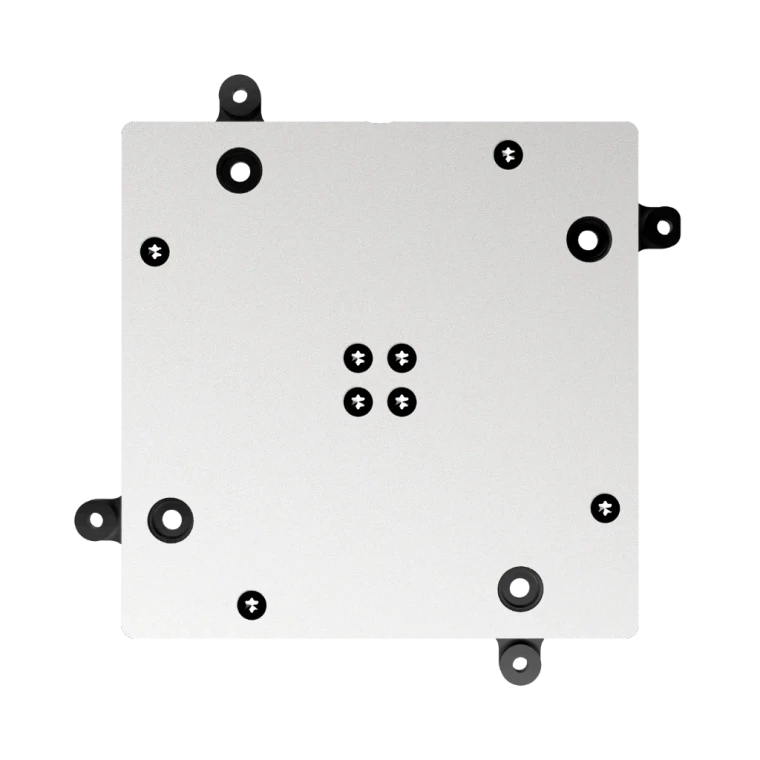

The Anywaves Compact X-Band Antenna is a TRL 9, flight-proven antenna for payload telemetry downlink from LEO satellites to ground stations. Operating from 7.9 to 8.5 GHz with a realized gain of 15.5 dBi at 8.2 GHz, it enables high data rate links in a 100 × 100 mm footprint with just 6.5 mm of protrusion above the satellite panel. Available in LHCP or RHCP, it provides high-quality single circular polarization with an axial ratio below 1 dB at boresight.
Designed for nanosatellites and LEO platforms, the Compact X-Band Antenna features a directive narrow beam (~20° HPBW) that concentrates all RF energy towards the ground station during the pass, maximizing data throughput. Its PEEK Radome ensures protection against thermal and radiation environments. Compatible with the Anywaves Test Hat for X-Band Antennas, it is supplied with full acceptance testing on flight models. ITAR Free.
Key Features:
-
-
TRL 9 — in orbit across multiple missions
-
High data rate thanks to its pencil beam radiation
-
Compatible with global X-Band ground networks
-
Fits any LEO platform — size < 1U
-
Full acceptance testing included
-
ITAR Free — worldwide delivery
-
Included Services
-
- Complete EIDP (End Item Data Package)
- In-Depth Engineering Support
- Further Testing Available On Demand
- Specific Requests Analysis With Experts
| Parameter | Value |
|---|---|
| Lead Time | 1 month |
| Dimensions | L 100 x W 100 x H 16 mm3 (Without Connector) |
| Mass | 70 g +/- 7 g (With Connector) |
| Frequency Range | From 7.9 GHz to 8.5 GHz |
| Bandwidth | 600 MHz |
| Reflection Coefficient | < -15 dB |
| Half PowerBeam Width | ~20° (±10°) |
| Realized Gain | 15.5 dBi @ 8.2 GHz |
| Qualification Temperature | - 120°C / + 120°C |
| Type | Document Name | Action & Size |
|---|---|---|
| No public documentation available. Please inquire for details. | ||
