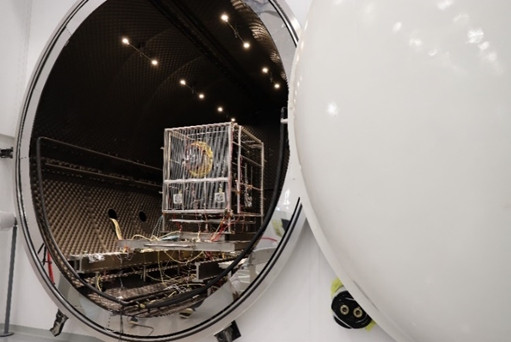

Thermal Vacuum Testing (TVAC)

AQMAAR offers comprehensive Thermal Vacuum (TVAC) testing to validate satellite survivability in simulated space environments. This service combines high-vacuum conditions with extreme thermal cycling to verify the thermal control subsystem (TCS) design and overall system workmanship.

Key Capabilities:

• Thermal Balance: Verifies the satellite's thermal model against actual performance in steady-state conditions.
• Thermal Cycling: Subjects the hardware to alternating hot and cold soaks to stress-test materials and solder joints.
• Bake-Out: Removes volatile contaminants (outgassing) prior to sensitive operations.
• Functional Testing: Complete system operation monitoring while under vacuum conditions

Chamber specs:

Large Chamber (CAST):

• • Dimensions: 4.5m (Dia) × 6.0m (L)
  • Vacuum Level: < 6.5 × 10⁻⁵ Pa
  • Temp Range: -173°C to +200°C
  • Cooling: LN2 Circulation

Mid-Size Chamber (LACO):

• • Dimensions: 1m × 1m × 1m
  • Vacuum Level: 10⁻⁵ Pa
  • Temp Range: -150°C to +150°C

Small Chamber (ABBESS):

• • Dimensions: 0.6m Cube
  • Vacuum Level: 10⁻⁷ bar
  • Temp Range: -80°C to +150°C
