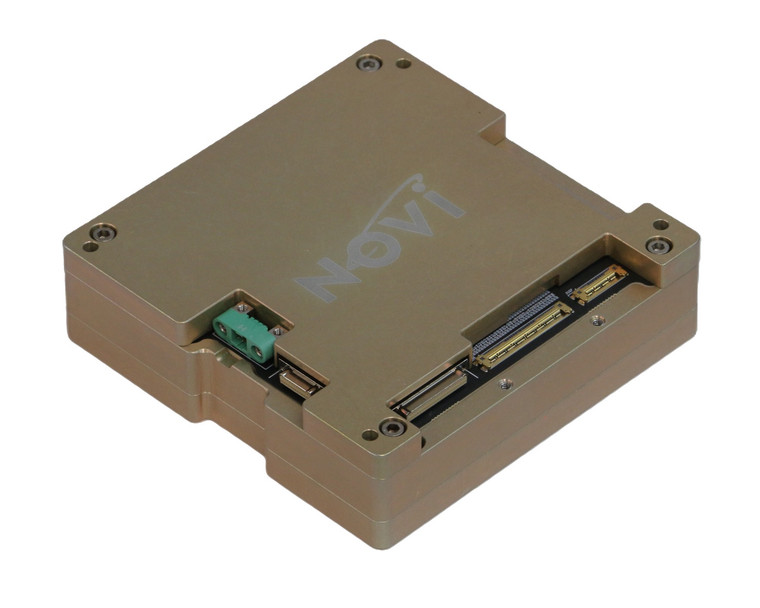

The SP240 is NOVI’s flagship, flight-proven, low SWaP, high-performance On-Board Computer.
Featuring a state-of-the-art AMD Versal adaptive SoC, NOVI’s AI-enabled SP240 OBC is a highly-optimized edge processor that offers un-paralleled machine-learning performance in a power efficient CubeSat form factor, while being powerful enough to operate larger payloads and satellite missions.
The AMD Versal is a complex radiation tolerant and latch-up immune SoC that has high performance and real time application processor cores, AI Engine tiles for machine learning workloads, and highly configurable programmable logic for flexible IO.
NOVI’s SP240 OBC also features a radiation-hardened Vorago MCU which can either be used as the primary computer, or as a supervisor for the main processor and other spacecraft systems.
Performance Features:
- AMD/Xilinx Versal (AI Edge Series)
- Application Processor: Dual-core ARM® Cortex®-A72
- Real-time Processor: Dual-core ARM® Cortex®-R5F
- Programmable Logic (FPGA)
- AI Engines: High-performance parallel compute cores
- 12 TOPS ML performance
- 8 GB DDR4
- Vorago ARM MCU
- Low-power ARM® Cortex®-M4
- Embedded rad-hard FRAM
Software Support:
- AMD/Xilinx Versal: Embedded Linux
- Vorago ARM MCU: FreeRTOS™
Radiation Tolerance:
- Radiation-hardened Vorago ARM MCU
- SEL immune Xilinx processor
- Built in SEU/SEFI mitigation
- ECC protection on all memory interfaces
- Redundant storage for boot images and data
- Radiation-hardened version for long
duration, MEO, GEO, and beyond
- Dimensions:
- 93 x 93 x 25 mm^3
- Power Consumption:
- <750 mW (low power mode)
- Power Consumption:
- 5 to 50 W (high performance modes)
- Low speed interfaces:
- RS-422
- Low speed interfaces:
- UART
- Low speed interfaces:
- CAN
- Low speed interfaces:
- I2C
- Low speed interfaces:
- SPI
- Ethernet interfaces:
- 10G/25G/40G/100G ethernet
- Ethernet interfaces:
- 1G ethernet
- High-speed serial interfaces:
- PCIe
- High-speed serial interfaces:
- JESD204B
- High-speed serial interfaces:
- SLVS-EC
- High-speed serial interfaces:
- SpaceWire
- High-speed parallel interfaces:
- LVDS
- High-speed parallel interfaces:
- MIPI
- Other Interfaces:
- Analog inputs and outpu
- Other Interfaces:
- Optional PC-104/CubeSat KitTM Header
- Other Interfaces:
- Optional integrated GNSS
- Other Interfaces:
- Optional Iridium modem
- AMD/Xilinx Versal (AI Edge Series)
- Application Processor: Dual-core ARM® Cortex®-A72
- Real-time Processor: Dual-core ARM® Cortex®-R5F
- Programmable Logic (FPGA)
- AI Engines: High-performance parallel compute cores
- 12 TOPS ML performance
- 8 GB DDR4
- Vorago ARM MCU
- Low-power ARM® Cortex®-M4
- Embedded rad-hard FRAM
- AMD/Xilinx Versal: Embedded Linux
- Vorago ARM MCU: FreeRTOS™
- Radiation-hardened Vorago ARM MCU
- SEL immune Xilinx processor
- Built in SEU/SEFI mitigation
- ECC protection on all memory interfaces
- Redundant storage for boot images and data
- Radiation-hardened version for long
duration, MEO, GEO, and beyond
The SP240 is NOVI’s flagship, flight-proven, low SWaP, high-performance On-Board Computer.
Featuring a state-of-the-art AMD Versal adaptive SoC, NOVI’s AI-enabled SP240 OBC is a highly-optimized edge processor that offers un-paralleled machine-learning performance in a power efficient CubeSat form factor, while being powerful enough to operate larger payloads and satellite missions.
The AMD Versal is a complex radiation tolerant and latch-up immune SoC that has high performance and real time application processor cores, AI Engine tiles for machine learning workloads, and highly configurable programmable logic for flexible IO.
NOVI’s SP240 OBC also features a radiation-hardened Vorago MCU which can either be used as the primary computer, or as a supervisor for the main processor and other spacecraft systems.
Performance Features:
Software Support:
Radiation Tolerance:
