Nano Pin Puller (nD3PP)
Dcubed
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.
Straight forward release actuator locking mission-critical subsystems during launch and releasing them safely on orbit.

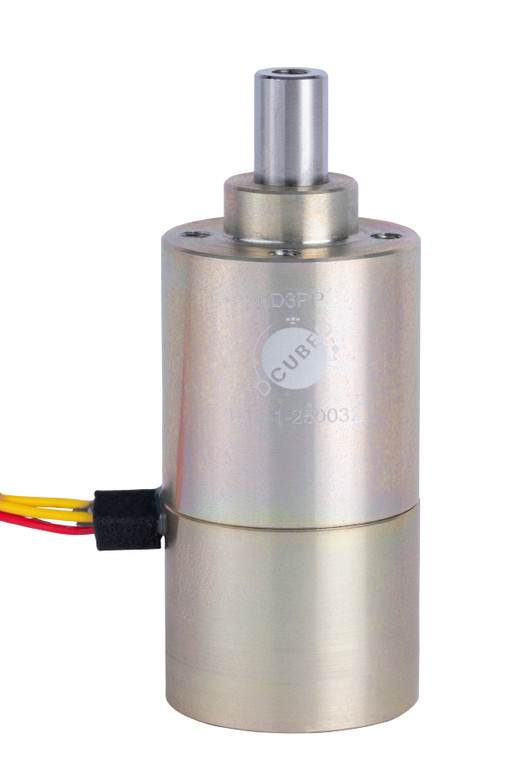

The Dcubed Micro Pin Puller (uD3PP) is a Shape Memory Alloy (SMA) based release actuator which locks sensitive equipment during launch and safely releases it on orbit. It is one of the smallest, yet powerful Hold-Down and Release Mechanism (HDRM) solutions on the market. Moreover, it is easily field-resettable, easy-to-use and readily available as a COTS component.
VIDEO: Check out how to trigger and easily reset the Dcubed Micro Pin Puller uD3PP here:
Key Features
- Front and Rear Field-Resettable in Seconds, up to 100 times
- Short Delivery Time (10-12 weeks)
- Fully Redundant Actuation
- Smart SMA Trigger
- Very Low Shock
- Shear Load (Release Load): 120-150 N
- Proof Load:120 N Push-in Load (axial), 500 N Sideload (shear)
- Body Size: 24 x 50 x 41 mm
- Mass: 75-85 grams
- Body material: Hard anodized Aluminum 7075-T7351
- Pin material: Stainless Steel 17-4PH
- Temperatures: -35 °C to +75 °C
- Actuation Sensor
- Customizable Interfaces
Export Control
- The Dcubed Micro Pin Puller (uD3PP) is ITAR Free.
Submit an inquiry in order to request documents related to this product (Datasheet(s), CAD, ...etc).
| Parameter | Value |
|---|---|
| Dimensions | 24 x 50 x 41 mm |
| Mass | 75 to 85 grams |
| Operating Temperature Range | -35C to +75C |
| Shear Load | 120 to 150 N |
- Front and Rear Field-Resettable in Seconds, up to 100 times
- Short Delivery Time (10-12 weeks)
- Fully Redundant Actuation
- Smart SMA Trigger
- Very Low Shock
- Shear Load (Release Load): 120-150 N
- Proof Load:120 N Push-in Load (axial), 500 N Sideload (shear)
- Body Size: 24 x 50 x 41 mm
- Mass: 75-85 grams
- Body material: Hard anodized Aluminum 7075-T7351
- Pin material: Stainless Steel 17-4PH
- Temperatures: -35 °C to +75 °C
- Actuation Sensor
- Customizable Interfaces
- The Dcubed Micro Pin Puller (uD3PP) is ITAR Free.
Straight forward release actuator locking mission-critical subsystems during launch and releasing them safely on orbit.
The Dcubed Micro Pin Puller (uD3PP) is a Shape Memory Alloy (SMA) based release actuator which locks sensitive equipment during launch and safely releases it on orbit. It is one of the smallest, yet powerful Hold-Down and Release Mechanism (HDRM) solutions on the market. Moreover, it is easily field-resettable, easy-to-use and readily available as a COTS component.
VIDEO: Check out how to trigger and easily reset the Dcubed Micro Pin Puller uD3PP here:
Key Features
Export Control
Submit an inquiry in order to request documents related to this product (Datasheet(s), CAD, ...etc).
