DROP-12 Deployable Solar Panel
2nd Space
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.

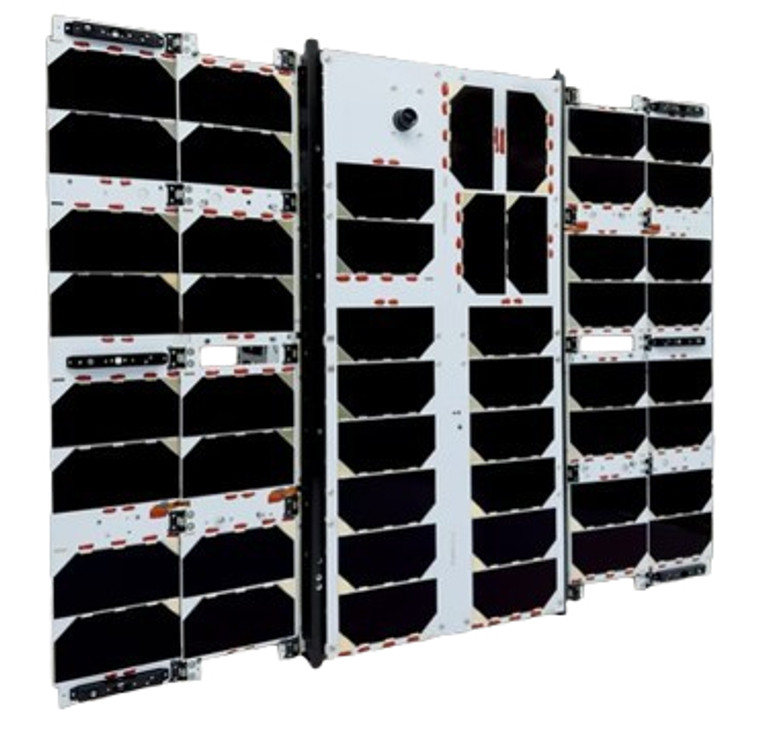

2NDSpace's DROP-04X deployable panels are a solution with flight heritage offering high versatility with multiple additional options, such as configurable deployment angle and strings direction, customizable HDRM voltage and back-string option.
Key features:
- 4U lateral panel (Compatible with 16U/8U Cubesat)
- Max Power 20W - (20 V @ 1.0 A - 2x 20V @ 0.5 A)
- Backstring option +20W (20V @0.5A)
- Redundant HDRM
- Customizable deployment angle 90° - 135°
- Deployment swithces
- Integrated Photodiodes and thermal sensors
- Integrated HDRM control system
- Improved thermal dissipation technology
- Embedded magnetorquer option
- RBF, Umbilical optional and IMU option
| Parameter | Value |
|---|---|
| Compatiblity | 16U and 8U Cubesats |
| Peak Power | 20 W |
| Deployment Angle | 90 to 135 degrees |
| Qualification Test | NASA GEVS: GSFC-STD-7000A |
| Qualification Test | ESA ECSS-E-ST-10-03C |
- 4U lateral panel (Compatible with 16U/8U Cubesat)
- Max Power 20W - (20 V @ 1.0 A - 2x 20V @ 0.5 A)
- Backstring option +20W (20V @0.5A)
- Redundant HDRM
- Customizable deployment angle 90° - 135°
- Deployment swithces
- Integrated Photodiodes and thermal sensors
- Integrated HDRM control system
- Improved thermal dissipation technology
- Embedded magnetorquer option
- RBF, Umbilical optional and IMU option
2NDSpace's DROP-04X deployable panels are a solution with flight heritage offering high versatility with multiple additional options, such as configurable deployment angle and strings direction, customizable HDRM voltage and back-string option.
Key features:
