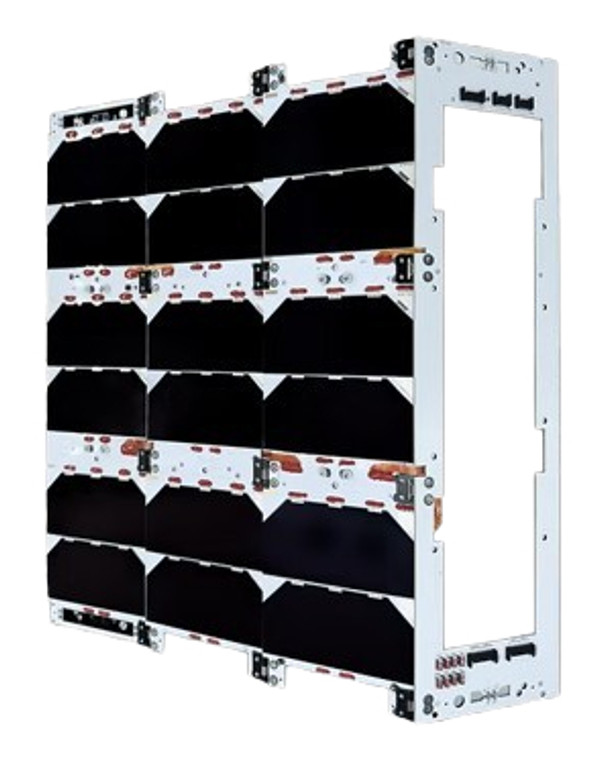

DROP-04X Deployable Solar Panel
2nd Space
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.
2NDSpace's DROP-03XL deployable panels are a solution with flight heritage offering high versatility with multiple additional options, such configurable deployment angle and strings direction, customizable HDRM voltage and back-string option.
Key features:
- 3U lateral panel (Compatible with 3U/6U/12U Cubesat)
- Power Production
- 22.5W - 15V@1.5 A / 3x 15V@0.5 A
- 30W - with body mounted string: 15V@2.0 A / 4x 15V@0.5 A
- Backstring option: +7.5W (15V@0.5A)
- Customizable deployment angle 90° - 135°
- Redundant HDRM
- Deployment swithces
- Integrated Photodiodes and thermal sensors
- Integrated HDRM control system
- Improved thermal dissipation technology
- Embedded magnetorquer option
- RBF, Umbilical optional and IMU option
| Parameter | Value |
|---|---|
| Number of Cells | 18 to 24 |
| Number of Deployable Elements | 3 |
| Peak Power | 22 W |
| Panel Voltage | 15.6 V |
| Peak Current | 0.5 to 2 A |
| Protection Loss | <0.15 mW |
| Deployment Angle | 90-135 degrees |
| Qualification Test | NASA GEVS: GSFC-STD-7000A |
| Qualification Test | ESA ECSS-E-ST-10-03C |
- 3U lateral panel (Compatible with 3U/6U/12U Cubesat)
- Power Production
- 22.5W - 15V@1.5 A / 3x 15V@0.5 A
- 30W - with body mounted string: 15V@2.0 A / 4x 15V@0.5 A
- Backstring option: +7.5W (15V@0.5A)
- Customizable deployment angle 90° - 135°
- Redundant HDRM
- Deployment swithces
- Integrated Photodiodes and thermal sensors
- Integrated HDRM control system
- Improved thermal dissipation technology
- Embedded magnetorquer option
- RBF, Umbilical optional and IMU option
2NDSpace's DROP-03XL deployable panels are a solution with flight heritage offering high versatility with multiple additional options, such configurable deployment angle and strings direction, customizable HDRM voltage and back-string option.
Key features:
