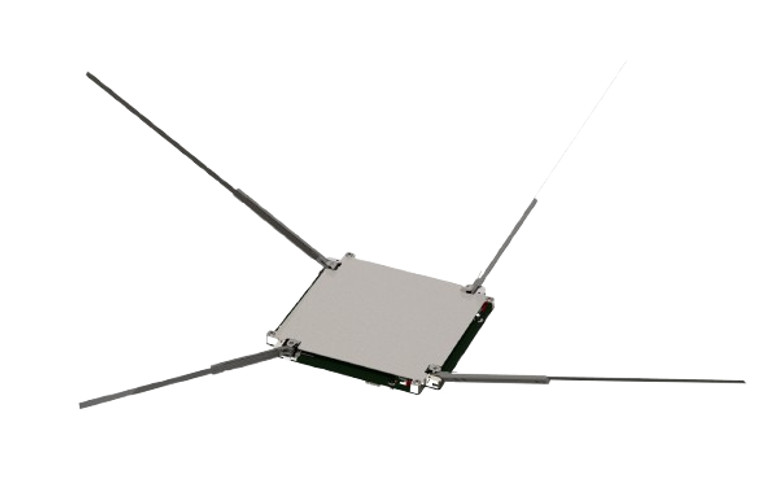

2NDSpace's CHORUS-01-LP is a modular antenna system that can be configured according to mission and platform requirements offering high reliability and high performance from 1U to 12U CubeSat for UHF and VHF frequencies.
CHORUS-01-LP is a CubeSat Deployable antenna with dual dipole linear polarization.
Key features:
- 1U Form factor lateral panel
- Linear polarization
- Dual Dipole with independent RF inputs
- Configurable frequency from 150MHz to 930MHz,
- Integrated deployment control system
- Triple redundant deployment system
- 12C Communication interface
- 3.3/5V supply voltage
- 20Mhz beamwidth with VSWR < 1.5
| Parameter | Value |
|---|---|
| Antenna Type | Dual Dipole |
| Polarization | 2x Linear |
| Frequency Range | 140 to 928 MHz |
| Beamwidth | 20 MHz |
| VSWR | < 1.3 |
| Main Gain | 0 dBi |
| Control System Voltage | 3.3 V |
| Control System Voltage | 5 V |
| Interface | I2C |
| Qualification Test | NASA GEVS: GSFC-STD-7000A |
| Qualification Test | ESA ECSS-E-ST-10-03C |
- 1U Form factor lateral panel
- Linear polarization
- Dual Dipole with independent RF inputs
- Configurable frequency from 150MHz to 930MHz,
- Integrated deployment control system
- Triple redundant deployment system
- 12C Communication interface
- 3.3/5V supply voltage
- 20Mhz beamwidth with VSWR < 1.5
2NDSpace's CHORUS-01-LP is a modular antenna system that can be configured according to mission and platform requirements offering high reliability and high performance from 1U to 12U CubeSat for UHF and VHF frequencies.
CHORUS-01-LP is a CubeSat Deployable antenna with dual dipole linear polarization.
Key features:
