Test Cap for S-Band TT&C Antennas - Anywaves - SmallSat Catalog - Orbital Transports
Additional Information
Lead Time:
3 months
Dimensions:
117 mm Diameter x 98 mm Length
Mass:
910 g (+/-10 g)
Frequency Bands:
1.98 to 2.29 GHz
Bandwidth:
> 310 MHz
Polarization:
Right Hand Circular Polarization
Polarization:
Left Hand Circular Polarization
Qualification Temperature:
-40C to +70C
Regulatory:
ITAR Free
Documentation

The Anywaves Test Cap (or Test Hat) for S-Band TT&C Antennas  is essential to carry out end-to-end testing (parallelism, assembly chain, thermal vacuum..). It features a simple and robust design consisting in a cylindrical aluminium cavity, covered with absorber material and terminated by a RF (Radio Frequency) probe.

It operates over the frequency band of the S-Band TTC antenna. This Test Cap enables reproductible performance measurements of antenna & transceiver on the platform.

It is delivered in a single part that can be directly screwed on top of the antenna, minimizing both the risk to damage the antenna and the manipulation steps.

NB : a Test Cap compatible version of the Anywaves S-Band TT&C antennas is required.

Key Features

  • Very low impact on the antenna matching
  • No mounting bracket required on the platform
  • Safe & easy to mount & dismount
  • Compatible with thermal vacuum environment
  • Low RF leakage to protect users from radiation during the test
  • ITAR Free

Test Cap for S-Band TT&C Antennas

Anywaves
Description

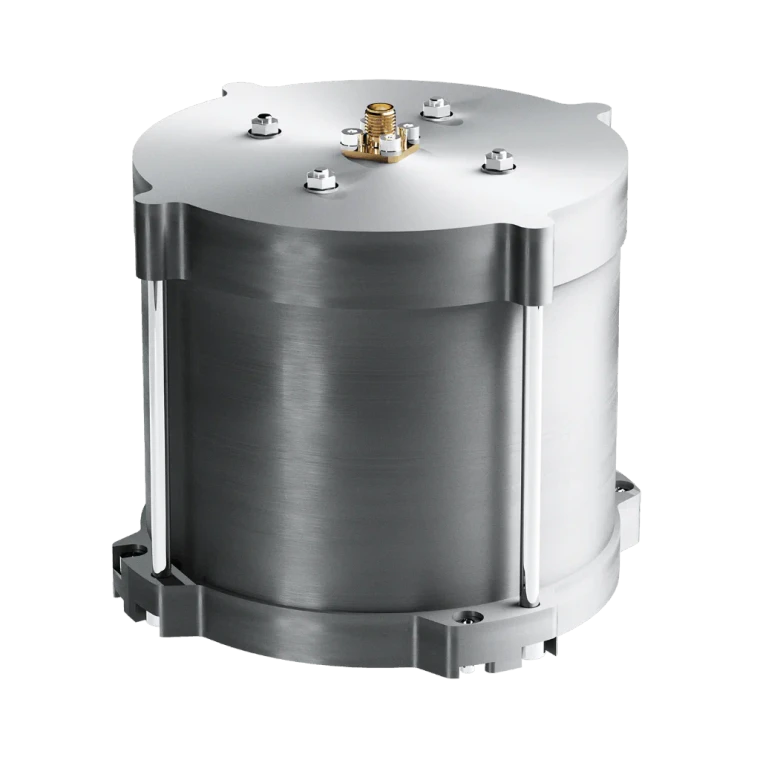

The Anywaves Test Cap (or Test Hat) for S-Band TT&C Antennas  is essential to carry out end-to-end testing (parallelism, assembly chain, thermal vacuum..). It features a simple and robust design consisting in a cylindrical aluminium cavity, covered with absorber material and terminated by a RF (Radio Frequency) probe.

It operates over the frequency band of the S-Band TTC antenna. This Test Cap enables reproductible performance measurements of antenna & transceiver on the platform.

It is delivered in a single part that can be directly screwed on top of the antenna, minimizing both the risk to damage the antenna and the manipulation steps.

NB : a Test Cap compatible version of the Anywaves S-Band TT&C antennas is required.

Key Features

  • Very low impact on the antenna matching
  • No mounting bracket required on the platform
  • Safe & easy to mount & dismount
  • Compatible with thermal vacuum environment
  • Low RF leakage to protect users from radiation during the test
  • ITAR Free
