Spinnaker3 Dragsail
Vestigo Aerospace
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.

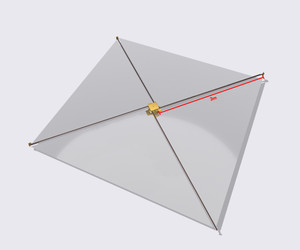

A dragsail is a thin-film membrane, deployed by a set of lightweight booms. Once deployed, the dragsail provides a large surface area and accelerates the deorbit of the host vehicle through aerodynamic drag.
Sail deployment can be initiated via command from the host vehicle, or autonomously based upon a stored deployment time, providing deorbit capability even if the host vehicle is inoperative. Spinnaker dragsails offer straightforward integration with the host vehicle, with a simple bolt-on mechanical interface and a single electrical connection. All Spinnaker dragsails employ radiation-hardened electronics and life-tested batteries to ensure reliable deployment after 5 years on-orbit. Sail material is designed to withstand the orbital environment throughout the deorbit phase, including the effects of atomic oxygen.

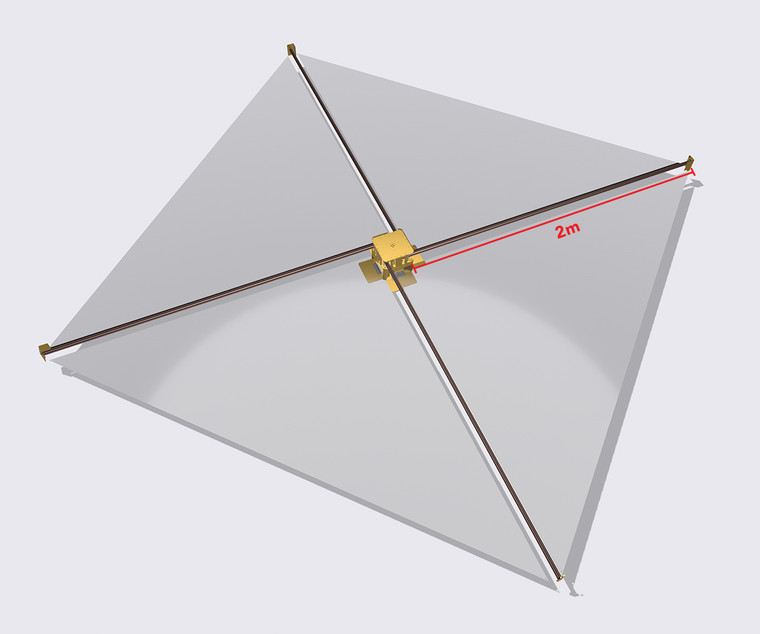

Spinnaker2 has 2m booms and an 8.6 m^2 frontal surface area. Spinnaker2 is sized to deorbit 16U CubeSats and larger smallsats up to 180 kg.
| Parameter | Value |
|---|---|
| Mass | 7.0 kg |
| Dimensions | 20 x 20 x 20 cm (Stowed) |
| Dimensions | 400 x 400 x 20 cm (Deployed) |
| Boom Length | 2 m |
| Frontal Area | 8.6 m^2 |
| Voltage Input | 28V +/-6V |
| Interface | I2C |
| Interface | RS422 |
| Connector | 15 Pin Micro-D Connector |
| Mechanical Interface | 4x Bolts on mounting surface |
A dragsail is a thin-film membrane, deployed by a set of lightweight booms. Once deployed, the dragsail provides a large surface area and accelerates the deorbit of the host vehicle through aerodynamic drag.
Sail deployment can be initiated via command from the host vehicle, or autonomously based upon a stored deployment time, providing deorbit capability even if the host vehicle is inoperative. Spinnaker dragsails offer straightforward integration with the host vehicle, with a simple bolt-on mechanical interface and a single electrical connection. All Spinnaker dragsails employ radiation-hardened electronics and life-tested batteries to ensure reliable deployment after 5 years on-orbit. Sail material is designed to withstand the orbital environment throughout the deorbit phase, including the effects of atomic oxygen.
Spinnaker2 has 2m booms and an 8.6 m^2 frontal surface area. Spinnaker2 is sized to deorbit 16U CubeSats and larger smallsats up to 180 kg.
