EPS II Power Module
EnduroSat
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.

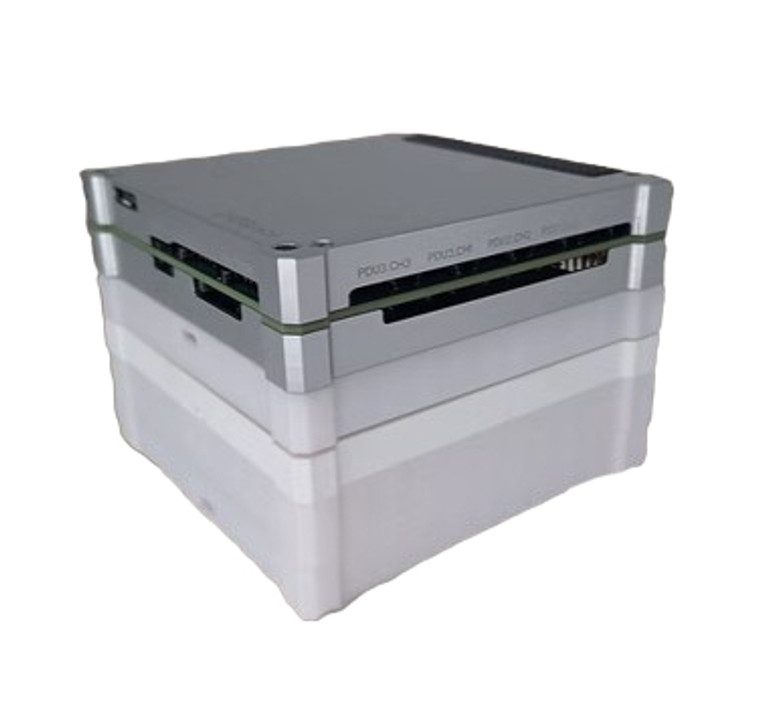

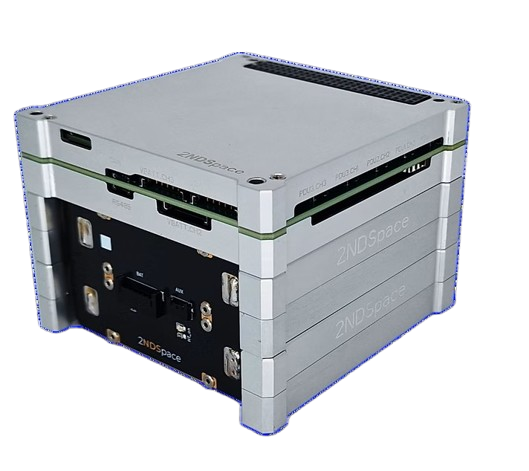

2NDSpace's SOLO EPS 8 is a modular power system that can be configured according to mission and platform requirements offering high versatility from 1U to 16U cubesat combined with high performances for platform subsystem and demanding payload units.
Key features:
- Power Distribution & Management Unit
- 8x Standard battery pack
- 12x power outputs
- Custom voltage output levels (3.3/5.0/12V/15V as standard)
- RS422, CAN, I2C Communication protocols
- Configurable 6x solar panel inputs
- 160 W instant power output
- 100 Whr energy storage
- Latch-up protection and fault tolerant power-continuity architecture
- >10 years durability in LEO
| Parameter | Value |
|---|---|
| Dimensions | 97 x 92 x 68 mm |
| Mass | 500 g |
| Number of Channels | 8 |
| Number of Controllable Channels | 24 (3x outputs per channel) |
| Voltage Output | 3.3V |
| Voltage Output | 5V |
| Voltage Output | 12V |
| Voltage Output | 17V |
| Overall Peak Power Output | 160 W |
| Power Storage | 100 Wh |
| Independent MPPT Inputs | 6 |
| Interface | RS485 |
| Interface | UART |
| Interface | CAN |
| Interface | I2C |
| Qualification Test | NASA GEVS: GSFC-STD-7000A |
| Qualification Test | ESA ECSS-E-ST-10-03C |
- Power Distribution & Management Unit
- 8x Standard battery pack
- 12x power outputs
- Custom voltage output levels (3.3/5.0/12V/15V as standard)
- RS422, CAN, I2C Communication protocols
- Configurable 6x solar panel inputs
- 160 W instant power output
- 100 Whr energy storage
- Latch-up protection and fault tolerant power-continuity architecture
- >10 years durability in LEO
2NDSpace's SOLO EPS 8 is a modular power system that can be configured according to mission and platform requirements offering high versatility from 1U to 16U cubesat combined with high performances for platform subsystem and demanding payload units.
Key features:
