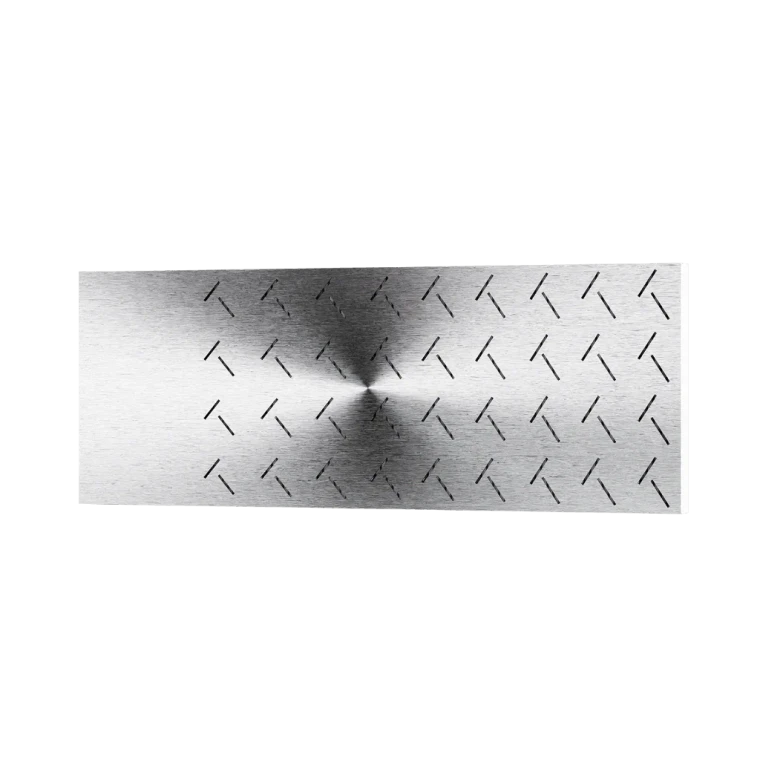

The Anywaves Slotted Waveguide Array Antenna is a custom-designed, high-gain flat antenna solution for satellite payload applications requiring gains above 20 dBi in the Ku or Ka band. Built from a full-metal structure through a hybrid series/parallel waveguide feed, it is optimised for SAR payloads, inter-satellite link communications and high-data-rate downlinks — applications where gain, beam stability, high power handling and structural robustness are the defining requirements.
Its full-metal construction makes it ESD-free, thermoelastically robust, and capable of handling high RF power levels without dielectric degradation. With a profile thickness below 10 mm, it imposes a minimal volume impact on the platform. Available in LHCP or RHCP. All parameters — frequency, gain, footprint, beam characteristics — are defined jointly with the customer and tailored to each mission. ITAR Free.
Key Features:
-
- Custom design to your frequency, gain and beam requirements
- Full-metal — ESD-free and thermoelastically robust
- High power handling — no dielectric failure mode
- Ultra-low profile — <10 mm thickness
- Ku and Ka band — SAR, ISL, high-data-rate downlink
- ITAR Free — worldwide delivery
Included Services
-
- Complete EIDP (End Item Data Package)
- In-Depth Engineering Support
- Further Testing Available On Demand
- Specific Requests Analysis With Experts
| Parameter | Value |
|---|---|
| Lead Time | 6 to 12 months (contact us for shorter lead time) |
| Frequency Band | Ku band to Ka band (custom — defined per project) |
| Polarization | Left or Right Hand Circular Polarization (custom) |
| Realized gain | > 20 dBi (design target — optimized per project) |
| Fractional bandwidth | ~5% (in circular polarization) |
| Profile thickness | < 10 mm without connector (ultra-low profile, full-metal) |
| Type | Document Name | Action & Size |
|---|---|---|
| No public documentation available. Please inquire for details. | ||
