S-Band Transceiver
EnduroSat
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.

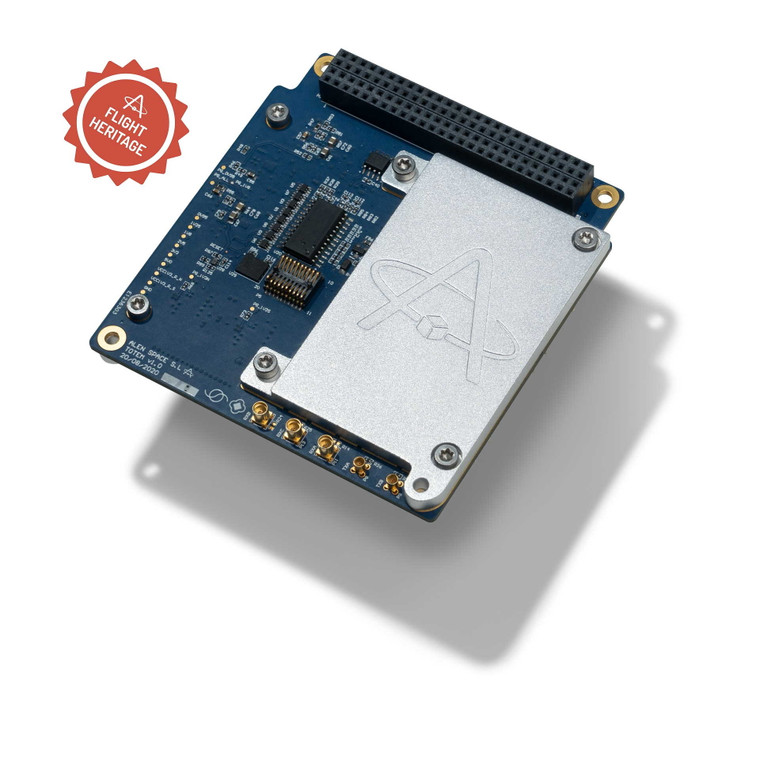

The high data rate (S-Band) transceiver, based on Alén Space’s SDR technology, is a feeder link transceiver for small satellites.
With this payload, customers can maximise the download of information and shorten the time needed to receive the data generated by the payload of their small satellite platforms.
Payload Bundle:
- SDR Motherboard
- Feeder link SW application
- S-band Frontend
Highlight Features:
- BPSK Modulation
- 2 Mbps Gross Data Rate
- Downlink: 2200 MHz - 2290 MHz
- Uplink: 2025-2110 MHz
- CCSDS 131.0-B-1 protocol
- CCSDS Randomization
- CCSDS Reed Solomon Coding
| Parameter | Value |
|---|---|
| Lead Time | 12 to 16 weeks |
| Form factor | PC/104 |
| Mass | < 130 g |
| Supply Voltage | 5 V |
| Power Consumption | ≤ 2.4 W in Tx mode |
| Idle Power Consumption | 1.4 W |
| Interface | CAN |
| Interface | UART |
| Interface | I2C |
| Interface | Ethernet |
| Operational Temperature Range | -40C to 85C |
| Modulation Scheme | QPSK (DVB-S2) |
| Modulation Scheme | 8PSK (DVB-S2) |
| Modulation Scheme | 16APSK (DVB-S2) |
| Modulation Scheme | 32APSK (DVB-S2) |
| Data Rate | up to 2 Mbps |
| Frequency Range | 2200 to 2290 Mhz |
