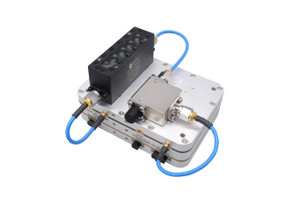

XLink-S - S Band Transceiver SDR
IQ spacecom
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.
The Remos Hasten S-Band transceiver is a feature-rich software-defined transceiver compatible with CCSDS standards in S-band up to 40 MSps.
It has been designed for flexibility and is compatible with most satellites.
| Parameter | Value |
|---|---|
| Lead Time | 4 to 6 weeks |
| Chassis size | 4U |
| Chassis Dimensions | (h/w/d) 177x482x555mm |
| Chassi Weight | 16 kg |
| RF Connection | SMA Female |
| Operating Temperature | 10C to 40C |
| Integrated Mouse, Keyboard, Screen | . |
| Interface | GUI, TCP/IP, REST API, FTP |
| Data Rate | Up to 425 Mbps (for high data-rate download mode)) |
| Modulation and FEC | DBV-S2(x) (for high data-rate download) |
| Input IF | 950-2150 MHz (for high data-rate download) |
| Frequency Range | 40MHz to 2.5GHz |
| Data Rate | Up to 40 Msps (for telemetry and telecommand modes) |
| Modulations | BPSK, QPSK, oQPSK, GMSK, PCM/PM, PCM/PSK/PM, PCM/FM |
| Doppler Correction | Automatic or External |
| Line Codes | NRZ-L/M/S and BP (Manchester)- L/M/S |
| FEC Codes | CCSDS Convolutional, Reed-Solomon, Concatenated, LDPC C2, Scrambler, Multi-state CADU (for telemetry) |
| FEC Codes | CCSDS BCH, Short-LDPC (for telecommand) |
| Packet formats | CCSDS CADU (for telemetry) |
| Packet formats | CCSDS CLTU (for telecommand) |
The Remos Hasten S-Band transceiver is a feature-rich software-defined transceiver compatible with CCSDS standards in S-band up to 40 MSps.
It has been designed for flexibility and is compatible with most satellites.
