DROP-03X Deployable Solar Panel
2nd Space
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.

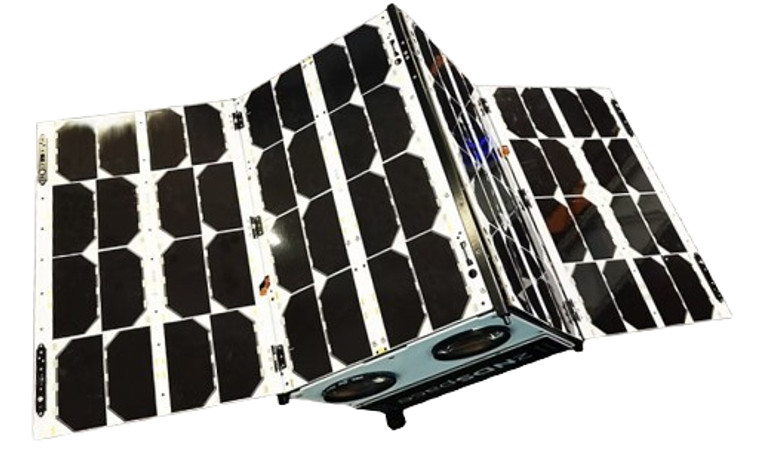

2NDSpace's DROP-12 deployable panels are a solution with flight heritage offering high versatility with multiple additional options, such configurable deployment angle and strings direction, customizable HDRM voltage and back-string option.
Key features:
- 6U/12U lateral panel (Compatible with 6U/12U Cubesat)
- Max Power 40W - (20 V @ 2.0 A - 2x 20V @ 1.0 A)
- Backstring option +20W (20V @ 1.0 A)
- Redundant HDRM
- Customizable deployment angle 90° - 135°
- Deployment swithces
- Integrated Photodiodes and thermal sensors
- Integrated HDRM control system
- Improved thermal dissipation technology
- Embedded magnetorquer option
- RBF, Umbilical optional and IMU option
| Parameter | Value |
|---|---|
| Number of Cells | 32 |
| Number of Deployable Elements | 1 |
| Peak Power | 39 |
| Panel Voltage | 20.8 |
| Peak Current | 1 to 2 A |
| Protection Loss | <0.15 mW |
| Deployement Angle | 90 to 135 degrees |
| Qualification Test | NASA GEVS: GSFC-STD-7000A |
| Qualification Test | ESA ECSS-E-ST-10-03C |
- 6U/12U lateral panel (Compatible with 6U/12U Cubesat)
- Max Power 40W - (20 V @ 2.0 A - 2x 20V @ 1.0 A)
- Backstring option +20W (20V @ 1.0 A)
- Redundant HDRM
- Customizable deployment angle 90° - 135°
- Deployment swithces
- Integrated Photodiodes and thermal sensors
- Integrated HDRM control system
- Improved thermal dissipation technology
- Embedded magnetorquer option
- RBF, Umbilical optional and IMU option
2NDSpace's DROP-12 deployable panels are a solution with flight heritage offering high versatility with multiple additional options, such configurable deployment angle and strings direction, customizable HDRM voltage and back-string option.
Key features:
