CORE-06Z Solar Panel
2nd Space
Click 'Get Pricing' to add this to a quote and access pricing information. After submission, get a response within 3 business days.

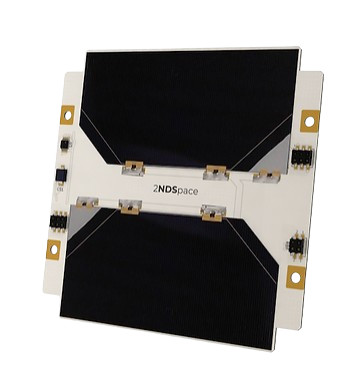

The 2NDSpace CORE-01Z is a 1U top/bottom solar panel designed for NewSpace applications. It consists of ultra triple junction 30% efficient solar cells. The panel has stabilized thermal dissipation architecture. It also has custom interfaces and umbilical connections.
Key features:
- 1U Form factor top/bottom panel
- Max Power 2.5W - 5 V @ 0.5 A
- Thermal sensor and Coarse sun sensor integrated
- Zero-residual dipole design
- Improved thermal dissipation technology
- Embedded magnetorquer option
- Additional IMU option
- RBF and Umbilical optional
| Parameter | Value |
|---|---|
| CubeSat Compatibility | 1U, 2U, and 3U |
| CubeSat Panel Side | Top/Bottom |
| Mass | 38 g |
| Form Factor | 1x1 U |
| Peak Power | 2.45 W |
| Open Circuit Voltage | 5.2 V |
| Qualification Test | NASA GEVS: GSFC-STD-7000A |
| Qualification Test | ESA ECSS-E-ST-10-03C |
- 1U Form factor top/bottom panel
- Max Power 2.5W - 5 V @ 0.5 A
- Thermal sensor and Coarse sun sensor integrated
- Zero-residual dipole design
- Improved thermal dissipation technology
- Embedded magnetorquer option
- Additional IMU option
- RBF and Umbilical optional
The 2NDSpace CORE-01Z is a 1U top/bottom solar panel designed for NewSpace applications. It consists of ultra triple junction 30% efficient solar cells. The panel has stabilized thermal dissipation architecture. It also has custom interfaces and umbilical connections.
Key features:
