Origami Solar Array

Dcubed
Description

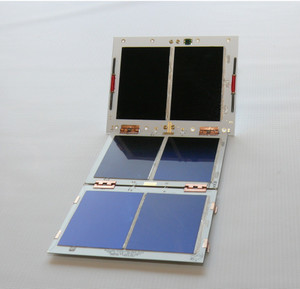

Deployable 100W Origami solar array for high-power space missions, stowed within a 1U form factor.

The Dcubed PowerCube is a deployable 100W Origami Solar Array stowed within a 1U form factor. PowerCube enables extremely power intensive space missions while requiring only minimal stowed volume during launch. It is one of the smallest, yet powerful solar array solutions  on the market. It is easily resettable, easy-to-use and readily available as a COTS subsystem.

Key Features

  • Short Delivery Time (12 months)
  • EOL power: 100 W (5 years lifetime)
  • Stowed volume: 100x100x100 mm (1U)
  • Deployed volume: 110x110x190 mm
  • Mass 1.2 Kg
  • Bus voltage: 14-28 V
  • Redundant actuation
  • Compliant with the CubeSat standard

Export Control

  • The Dcubed Origami Solar Array is ITAR Free.
Submit an inquiry in order to request documents related to this product (Datasheet(s), CAD, ...etc).

See contact form here

Current Stock:
Adding to request… The item has been added
Request a quote or information through the SmallSat Catalog and get a response within 2 to 3 business days.
Additional Information
Volume:
100 x 100 x 100 mm
Mass:
1.2 Kg
Power:
100 W
Bus Voltage:
14 to 28 V
Lifetime:
5 years
Form Factor:
1U
Lead Time:
12 months
