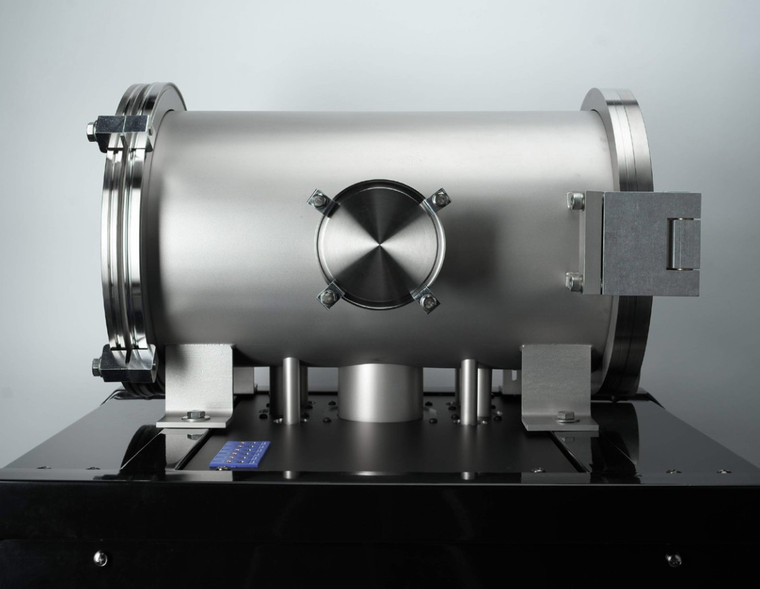

RVS Thermal Vacuum Solutions provides exceptional value space simulation systems for flight qualification of small satellites and components. Our advanced and affordable thermal vacuum bake-out and thermal vacuum cycling products are tailored for the small satellite community. With off-the-shelf test equipment for CubeSats up to 12U for purchase or rental, RVS can help you easily qualify your small satellite for launch. Established in 2018, RVS continues to make quality systems accessible to a wider audience. We strive to offer solutions for anyone trying to complete a mission to space.
RVS knows that Thermal Vacuum Testing is the last thing you want to worry about as your launch date approaches. Our line of small satellite test systems can provide you with drop-in-place test solutions for compliance with GSFC-STD-7000 or MIL-STD-1540 test standards. We take the guesswork out of Thermal Vacuum Testing to ensure you’ll be ready for orbit.
| 12UB | 12UC | |
| System Type | Bake-out | Cycling |
| Cubic Test Volume | 370mm x 240mm x 220mm(12U) | |
| Chamber Dimensions | 500mm L x 500 mm D | |
| Upper Temperature | +150°C | |
| Lower Temperature | Ambient | -150°C |
| Average Ramp Rate | 3°C/min | |
| Platen Grid (M6) | 50mm x 50mm | |
| Temperature Measurement | 6) Type-T Thermocouple input | |
| TC Accuracy | ±0.1% FSR | |
| Radiation Shielding | Standard | |
| High Vacuum Pump | Hybrid Turbomolecular Pump | |
| Turbopump Speed | 300 L/s (N2) | |
| Rough Vacuum Pump | Dry Roots Type | |
| Rough Pump Speed | 110 L/min | |
| Typical Pumpdown Time | 20-25 min (ATM to 5 x 10-5 Torr) | |
| Ultimate Pressure | 8 x 10-7 Torr | |
| Open User Ports | (2) x ISO 100 LF | |
| User Interface | 10in. Color Touchscreen, TCP/IP | |
| Data Storage | Internal 32GB, USB, Ethernet | |
| Integrated Remote VPN | Standard | |
| Compressed Air | 5-7 bar (60-100 psi) | |
| Air/GN2/Exhaust Connections | 8mm (5/16in.) Push-To-Connect Tube Fittings | |
| LN2 Connection | - | CGA295 |
| Power Requirements | 120V/15A/1ph 0.6m x 1.2m |
|
| System Footprint | ||
| Type | Document Name | Action & Size |
|---|---|---|
| No public documentation available. Please inquire for details. | ||
