- Mass:
- 30 kg
- Dimensions:
- 700 x 500 x 500 mm^3
- GSD:
- 0.8 m
- Swath Area:
- 10 x 8 km
- Aperture Size:
- 450 mm
- Instantaneous Field Of View:
- 0.33 degrees
- Field Of View:
- 1.17 x 0.88 degrees
- Pixel Resolution:
- 12768 x 9564 pixels
- Pixel Pitch:
- 3.45 um
- Focal Length:
- 2157 mm
- Interface:
- Ethernet
- Required Power:
- 30 W
- Required Voltage:
- 12 V
- Urban Planning and Infrastructure Mapping
- Wildfire Mapping and Disaster Response
- Marine and Water Bodies Monitoring
- Agricultural Monitoring
- Forest Health Monitoring
- Facility Monitoring and Reconnaissance
- number of spectral bands - by custom spectral filter application,
- GSD / SWATH - change of camera to a different one / to our custom solution, change of optical system.

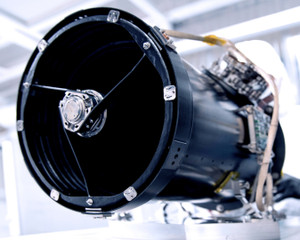

The SOP 450 (Scanway Optical Payload) is a microsatellite-sized imager designed for advanced Earth Observation applications. It is capable of capturing high-resolution imagery in the visible (RGB) spectral band. Operating from an altitude of 500 km, the SOP 450 delivers a submeter ground sampling distance, ensuring detailed spatial resolution for a wide range of observational and analytical needs.
Applications
The imager facilitates a wide range of Earth observation applications across various sectors, including:
Customization
Product customization is available, encompassing:
Flight heritage
The payload will be launched in the middle of the 2026.
Scanway Optical Payload 450 (SOP 450)
ScanwayThe SOP 450 (Scanway Optical Payload) is a microsatellite-sized imager designed for advanced Earth Observation applications. It is capable of capturing high-resolution imagery in the visible (RGB) spectral band. Operating from an altitude of 500 km, the SOP 450 delivers a submeter ground sampling distance, ensuring detailed spatial resolution for a wide range of observational and analytical needs.
Applications
The imager facilitates a wide range of Earth observation applications across various sectors, including:
- Urban Planning and Infrastructure Mapping
- Wildfire Mapping and Disaster Response
- Marine and Water Bodies Monitoring
- Agricultural Monitoring
- Forest Health Monitoring
- Facility Monitoring and Reconnaissance
Customization
Product customization is available, encompassing:
- number of spectral bands - by custom spectral filter application,
- GSD / SWATH - change of camera to a different one / to our custom solution, change of optical system.
Flight heritage
The payload will be launched in the middle of the 2026.
- Mass:
- 30 kg
- Dimensions:
- 700 x 500 x 500 mm^3
- GSD:
- 0.8 m
- Swath Area:
- 10 x 8 km
- Aperture Size:
- 450 mm
- Instantaneous Field Of View:
- 0.33 degrees
- Field Of View:
- 1.17 x 0.88 degrees
- Pixel Resolution:
- 12768 x 9564 pixels
- Pixel Pitch:
- 3.45 um
- Focal Length:
- 2157 mm
- Interface:
- Ethernet
- Required Power:
- 30 W
- Required Voltage:
- 12 V
- Urban Planning and Infrastructure Mapping
- Wildfire Mapping and Disaster Response
- Marine and Water Bodies Monitoring
- Agricultural Monitoring
- Forest Health Monitoring
- Facility Monitoring and Reconnaissance
- number of spectral bands - by custom spectral filter application,
- GSD / SWATH - change of camera to a different one / to our custom solution, change of optical system.
The SOP 450 (Scanway Optical Payload) is a microsatellite-sized imager designed for advanced Earth Observation applications. It is capable of capturing high-resolution imagery in the visible (RGB) spectral band. Operating from an altitude of 500 km, the SOP 450 delivers a submeter ground sampling distance, ensuring detailed spatial resolution for a wide range of observational and analytical needs.
Applications
The imager facilitates a wide range of Earth observation applications across various sectors, including:
Customization
Product customization is available, encompassing:
Flight heritage
The payload will be launched in the middle of the 2026.
