Razorback brings enterprise-grade Ethernet switching technology directly to your satellite platform. Razorback gives your satellite the flexibility to grow and adapt, supporting everything from straightforward connectivity to sophisticated networking to suit evolving mission needs.
Our modular design offers comprehensive network management built for space and is plug and play with our GPU platforms, Kestrel and Falcon.
Configure it as a simple switch for basic needs, harness its advanced networking capabilities to handle complex architectures, or use it to develop your own micro datacenter in space.

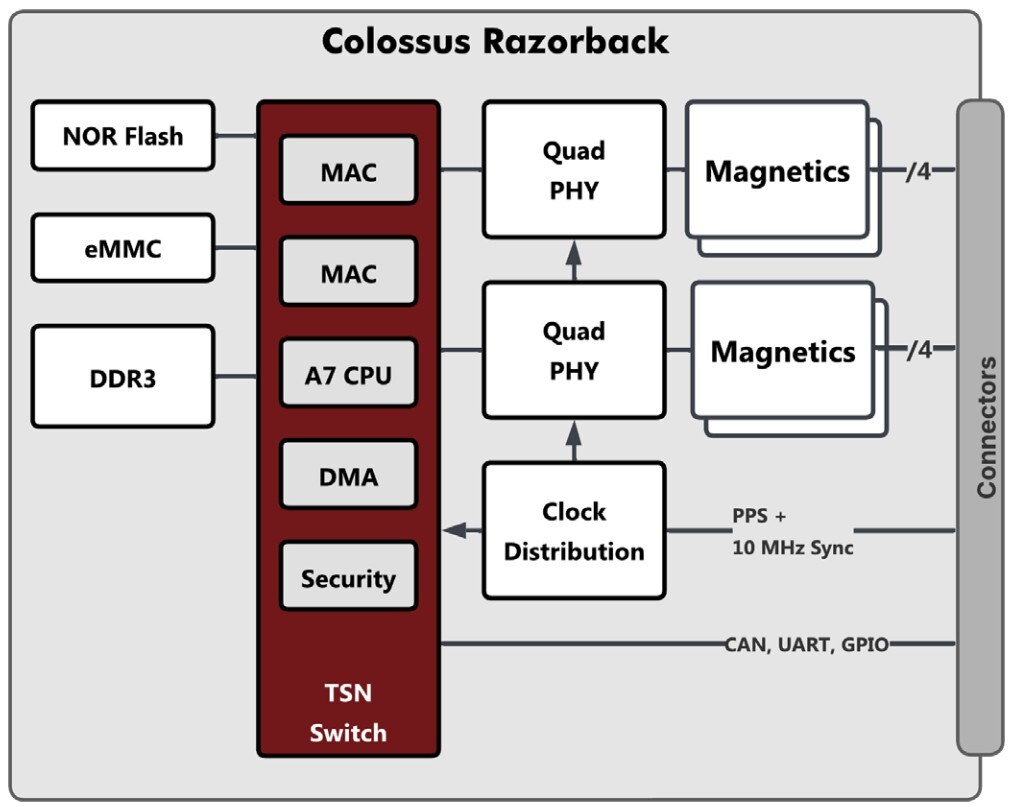

Razorback’s capable and secure architecture features a smart Layer 2 / Layer 3 switch with eight Gigabit Ethernet ports. Managed networking provides limited routing capabilities and VLAN separation. Multiple units can be operated in parallel for redundancy, and scalability.
Key Features:
- Time Sensitive Networking (TSN)
- Precision Time Protocol (PTP, IEEE 1588) and Network Time Protocol (NTP)
- Quality-of-Service (QoS) IEEE 802.1P
- Virtual LAN (VLAN) separation IEEE 802.1Q - up to 4096
- Jumbo Frames
- MAC Address table size - 8196
| Parameter | Value |
|---|---|
| Ethernet Networking | Eight 1000BASE-T |
| Ethernet Networking | PPS input and output |
| Ethernet Networking | 10 MHz input and output |
| Telemetry Command & Control | Two RS-422, RS-485 compatible |
| Telemetry Command & Control | Two CAN FD (1 Mbps) |
| Telemetry Command & Control | 4 buffered GPIOs |
| Dimensions | 97 x 91 x 25 mm |
| Dimensions | 1/4U form factor |
| Mass | 400 g |
| Power | Nominal: 10 W |
| Power | Absolute Max: 15 W |
| Input Voltage | 12 VDC regulated |
| Input Voltage | 24-36 VDC unregulated |
| Operating Temperature | -40 to +65 C |
| Storage Temperature | -55 to +85 C |
| Radiation | Designed for 5-year LEO missions to600 km SSO 30 krad(Si) (estimated) |
