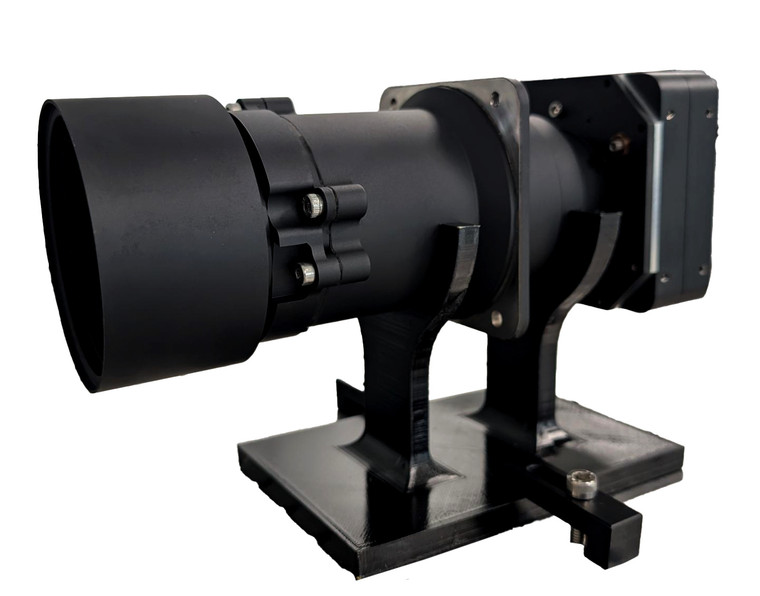

PRISM Wide Optical Payload is a compact, flight-proven optical payload designed for wide-area scanning and situational monitoring. Built for 8U-classsatellite platforms, it features a 26° field of view and 70 mm focal length, enabling broad coverage at low latency across the full orbital regime from LEO to GEO. At 2.2 kg, PRISM Wide serves as an efficient solution for high-cadence survey missions without the mass or integration overhead of conventional systems.
Applications
PRISM Wide supports a wide range of space domain operations, including:
- Space Domain Awareness (SDA)
- Resident Space Object (RSO) Detection &Tracking
- Rendezvous & Proximity Operations (RPO)Support
- Non-Earth Imaging (NEI) Missions
- Alternative Navigation
Customization
Product customization is available to meet end-user mission requirements, encompassing:
- Camera configuration — wide FOV, narrow FOV, or dual-camera setups
- Platform integration — adaptable to various small satellite
- Further customization available upon request based on specific mission needs
Flight Heritage
PRISM Wide is flight-proven, with heritage established aboard SCOT-1 in a dual-camera configuration featuring both wide and narrow field-of-view cameras in January 2025.
