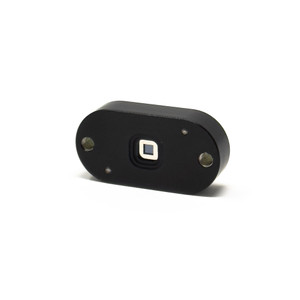

nanoSSOC D60

Nano Sun Sensor on a Chip (nanoSSOC) is a two-axes and low cost sun sensor for high accurate sun-tracking, pointing and attitude determination. The device measures the incident angle of sun ray in two orthogonal axes, providing a high sensitivity based on the geometrical dimensions of the design.

NanoSSOC-D60 includes a microcontroller that directly provides the sun light incident angles and other information useful for attitude determination, via UART, I2C or SPI protocol. nanoSSOC-D60 has tiny size, low weight and low power consumption to be the perfect ADCS sensing solution for nanosatellite platforms.

Specifications
Lead Time:
6 weeks
Field of View:
+/- 60 degree
Accuracy:
< 0.5 degree (3 sigma)
Precision:
< 0.1 degree
Voltage Input:
3.3 V
Voltage Input:
5 V
Power Consumption:
< 2mA
Dimensions:
43 x 14 x 5.9 mm
Mass:
6.5 g
Operating Temperature:
-30C to 85C
Qualification:
Radiation, 30 kRad
Qualification:
Random vibration, 14.1g @20-2000 Hz
Qualification:
Shock, 3000g @1-100 ms
Interface:
uart
Interface:
I2C
Interface:
SPI
Connector:
10-pin micro-connector
Material:
Aluminum 6082, Black anodized
