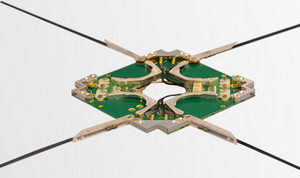

ISIS Deployable Antenna System for 6U/12U CubeSats

The Antenna System for 6/12U CubeSats design is based on the hugely successful ISISPACE deployable antenna system for 1U up to 3U CubeSats. This system has been redesigned from a more modular approach, to fit into 6/12U structures while, at the same time, providing the same capabilities. The antenna system allows the same options in antenna configuration such as 4x monopole, 2x dipole, 1x turnstile. Other configurations such as hybrids between dipole and monopole are also available that can cover from the VHF to UHF frequency ranges and they are deployed under user command.

Specifications
Type:
Flight Hardware
Connector:
Mini 9 pin OMNETICS
Interface:
I2C
Connector:
MMCX female 50 ohm
Mass:
115 g
Power Consumption:
2.3 W
Operational Temperature:
-20C to +80C
Supply Voltage:
4V to 17V
RF Power:
2 W
