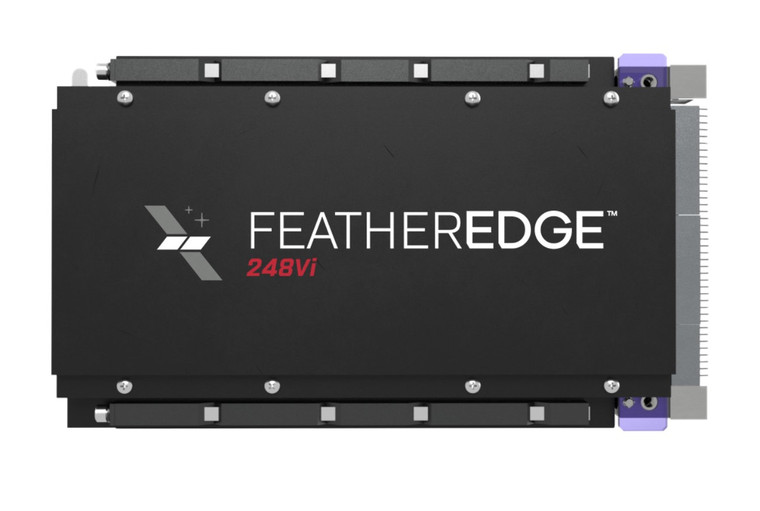

FeatherEdge™ 248Vi is a standalone modular 3U VPX Artificial Intelligence (AI) and Machine Learning (ML) processor designed for extreme environments and size-constrained applications.
FeatherEdge™ 248Vi is a part of the Fortis™ suite, which includes the following product line options:
- Sidus Single Board Computer (SSBC)
- Position, Navigation, and Timing (PNT)
- Global Positioning System (GPS) Receiver
- Custom Input/Output (I/O) Card
- Power Converter Card
- Software Defined Radio (SDR)
Key Features
- Designed for Autonomous and Mission-Critical Systems - FeatherEdge™ 248Vi delivers reliable near real-time data processing, rapid decision-making, and system resilience in demanding operational environments
- Powered by NVIDIA® Jetson AGX Orin™ Industrial - Provides high-performance compute capabilities for embedded edge applications, enabling advanced multi-sensor perception, situational awareness, and data fusion in a compact, power-efficient form
- Optimized for Size, Weight, Power and Cost (SWaP-C) - Tailored for unmanned platforms, cognitive electronic warfare, and C5ISRoperations across air, land, sea, and space
- Rugged SOSA® Aligned Design - Industry standard form factor with enhanced environmental resilience for seamless system integration
| Parameter | Value |
|---|---|
| SoC | NVIDIA® Jetson AGX Orin™ Industrial |
| Coprocessor | 248 TOPS |
| Microcontroller | Rad-tolerant ARM® Cortex® M7 |
| FPGA | PolarFire® SoC |
| RAM | 64 GB LPDDR5 |
| Voltage Input | 12 VDC |
| Power Consumption | 15-25 W under typical load |
| Power Consumption | Max 75 W |
| Dimensions | 3U VPX Slot (100 mm x 160 mm) |
| Mass | <1.5 kg |
| Memory | 680 GB pSLC NVMe SSD (withECC) |
| Memory | 64 GB eMMC 5.1 |
| Interfaces | 1x Gigabit Ethernet (GbE) |
| Interfaces | 1x 10 Gigabit Ethernet (10GbE) |
| Interfaces | 1x USB 2.0 |
| Interfaces | 1x USB 3.2 |
| Interfaces | 1x RS422 |
| Interfaces | 1x UART TTL |
| Interfaces | 1x PPS Input |
| Interfaces | 4x LVDS/SpaceWire |
| Interfaces | 1x CANbus |
| Interfaces | 1x PCIe® Gen4 |
| Software | Linux based OS |
| Software | TensorRT |
| Software | PyTorch |
| Radiation Tolerance | 25 krad TID for LEO |
| Radiation Tolerance | 100 krad TID for GEO |
| SEU Rate | <2.00 x 10-3 NA for LEO |
| SEU Rate | <6.00 x 10-3 NA for GEO |
