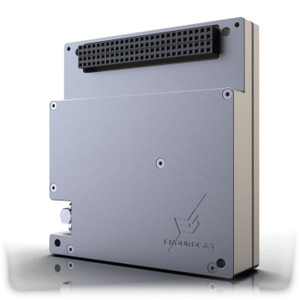

X-band Transmitter
EnduroSat
- Lead Time:
- 6 to 9 months
- Frequency Range:
- 8.0 to 8.4 GHz
- Interface:
- LVDS
- Interface:
- SpaceWire
- Interface:
- Ethernet
- Interface:
- CAN
- Interface:
- RS422
- Interface:
- Micro-D
- Modulation:
- QPSK
- Modulation:
- OQPSK
- Modulation:
- LDPC
- Data Rate:
- 12 to 75 Mbps (uncoded)
- Data Rate:
- 10 to 60 Mbps (coded)
- RF Output Power:
- 10 W (40 dBm)
- Operating Temperature:
- -25C to 60C
- Inactive Temperature:
- -40C to 70C
- Power Consumption:
- < 50 W
- Supply Voltage:
- 28 VDC unregulated
- Radiation tolerance:
- TID > 25 kRad
- High Resolution Earth imaging missions.
- Real-time telemetry and scientific payload data downlink.
- Satellite constellations requiring efficient communication systems.
The X-Transmitter is a compact, high-performance X-band transmitter designed for LEO missions, supporting up to 75 Mbps data rates with advanced modulation and error correction. Its customizable, radiation-tolerant design ensures reliable performance for Earth observation, telemetry, and satellite constellations.
The X-Transmitter is a cutting-edge solution designed to meet the rigorous demands of LEO satellite missions. Built on a robust Microchip Flash-Based SoC platform, it leverages advanced SEU resilience, sophisticated modulation techniques, and durable construction. This system ensures secure, reliable, and high-speed data transmission, making it an ideal choice for diverse space applications.
Key Features
High Performance
Achieves data rates up to 75 Mbps, enabling real-time telemetry and high-resolution image transfer.
Advanced coding with CCSDS-compliant LDPC, BCH, and Reed-Solomon ensures reliable data integrity.
Compact and Lightweight
Optimized for nanosatellites and microsatellites with a space-saving design.
Energy Efficient
Designed for low power consumption while delivering powerful data transmission capabilities.
Customizable
Fully adaptable to mission-specic requirements, including redundant data and control interfaces.
Built for Space
SEU resilience, latch-up protection, and thermal management ensure uninterrupted operation over a 3–5 year LEO mission lifespan.
Applications

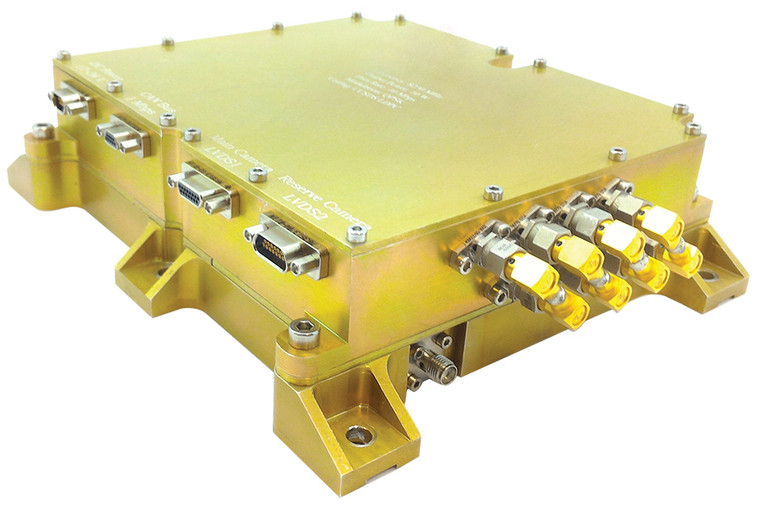

X-Transmitter
CAVU Aerospace UK LtdThe X-Transmitter is a compact, high-performance X-band transmitter designed for LEO missions, supporting up to 75 Mbps data rates with advanced modulation and error correction. Its customizable, radiation-tolerant design ensures reliable performance for Earth observation, telemetry, and satellite constellations.
The X-Transmitter is a cutting-edge solution designed to meet the rigorous demands of LEO satellite missions. Built on a robust Microchip Flash-Based SoC platform, it leverages advanced SEU resilience, sophisticated modulation techniques, and durable construction. This system ensures secure, reliable, and high-speed data transmission, making it an ideal choice for diverse space applications.
Key Features
High Performance
Achieves data rates up to 75 Mbps, enabling real-time telemetry and high-resolution image transfer.
Advanced coding with CCSDS-compliant LDPC, BCH, and Reed-Solomon ensures reliable data integrity.
Compact and Lightweight
Optimized for nanosatellites and microsatellites with a space-saving design.
Energy Efficient
Designed for low power consumption while delivering powerful data transmission capabilities.
Customizable
Fully adaptable to mission-specic requirements, including redundant data and control interfaces.
Built for Space
SEU resilience, latch-up protection, and thermal management ensure uninterrupted operation over a 3–5 year LEO mission lifespan.
Applications
- High Resolution Earth imaging missions.
- Real-time telemetry and scientific payload data downlink.
- Satellite constellations requiring efficient communication systems.
- Lead Time:
- 6 to 9 months
- Frequency Range:
- 8.0 to 8.4 GHz
- Interface:
- LVDS
- Interface:
- SpaceWire
- Interface:
- Ethernet
- Interface:
- CAN
- Interface:
- RS422
- Interface:
- Micro-D
- Modulation:
- QPSK
- Modulation:
- OQPSK
- Modulation:
- LDPC
- Data Rate:
- 12 to 75 Mbps (uncoded)
- Data Rate:
- 10 to 60 Mbps (coded)
- RF Output Power:
- 10 W (40 dBm)
- Operating Temperature:
- -25C to 60C
- Inactive Temperature:
- -40C to 70C
- Power Consumption:
- < 50 W
- Supply Voltage:
- 28 VDC unregulated
- Radiation tolerance:
- TID > 25 kRad
- High Resolution Earth imaging missions.
- Real-time telemetry and scientific payload data downlink.
- Satellite constellations requiring efficient communication systems.
The X-Transmitter is a compact, high-performance X-band transmitter designed for LEO missions, supporting up to 75 Mbps data rates with advanced modulation and error correction. Its customizable, radiation-tolerant design ensures reliable performance for Earth observation, telemetry, and satellite constellations.
The X-Transmitter is a cutting-edge solution designed to meet the rigorous demands of LEO satellite missions. Built on a robust Microchip Flash-Based SoC platform, it leverages advanced SEU resilience, sophisticated modulation techniques, and durable construction. This system ensures secure, reliable, and high-speed data transmission, making it an ideal choice for diverse space applications.
Key Features
High Performance
Achieves data rates up to 75 Mbps, enabling real-time telemetry and high-resolution image transfer.
Advanced coding with CCSDS-compliant LDPC, BCH, and Reed-Solomon ensures reliable data integrity.
Compact and Lightweight
Optimized for nanosatellites and microsatellites with a space-saving design.
Energy Efficient
Designed for low power consumption while delivering powerful data transmission capabilities.
Customizable
Fully adaptable to mission-specic requirements, including redundant data and control interfaces.
Built for Space
SEU resilience, latch-up protection, and thermal management ensure uninterrupted operation over a 3–5 year LEO mission lifespan.
Applications
