SSOC A60 - Solar MEMS Technologies - SmallSat Catalog - Orbital Transports
Additional Information
Lead Time:
6 weeks
Sun Sensor Type:
2 orthogonal axes
Field of View:
+/- 60 degree
Accuracy:
< 0.3 degree (3 sigma)
Precision:
< 0.05 degree
Mass:
25 g
Power Supply:
5 V
Power Supply:
0-5V < 25 mA consumption
Dimensions:
40 x 30 x 12 mm
Material:
Aluminum 6082, Alodine + black anodized
Operating Temperature:
-45 C to 85C
Qualification:
Radiation, > 100 kRad
Qualification:
Random Vibration, 28.5 g @ 20-2000 Hz
Qualification:
Shock, 3000 g @1-100 ms
Documentation

Sun Sensor on a Chip (SSoC), is based on MEMS fabrication processes to achieve highly integrated sensing structures for high accurate sun-tracking, positioning systems and attitude determination.

SSOC-A60 device measures the incident angle of a sun ray in two axes. The high sensitivity is based on geometrical dimensions of the design. Every sensor is calibrated and characterized, and a look-up table is provided for its application. The use of a metal shield and a cover glass in the optical eye minimizes the ageing of the device under high radiation levels.

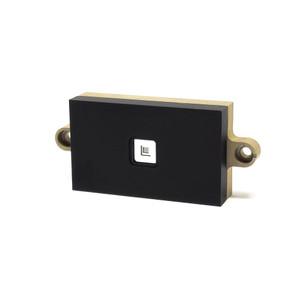

SSOC A60 - Sun Sensor

SOLAR MEMS TECHNOLOGIES
Description

Sun Sensor on a Chip (SSoC), is based on MEMS fabrication processes to achieve highly integrated sensing structures for high accurate sun-tracking, positioning systems and attitude determination.

SSOC-A60 device measures the incident angle of a sun ray in two axes. The high sensitivity is based on geometrical dimensions of the design. Every sensor is calibrated and characterized, and a look-up table is provided for its application. The use of a metal shield and a cover glass in the optical eye minimizes the ageing of the device under high radiation levels.

Current Stock:
Adding to request… The item has been added
Add this to a request to access pricing information and additional technical data. After submission, get a response within 3 business days.
Additional Information
Lead Time:
6 weeks
Sun Sensor Type:
2 orthogonal axes
Field of View:
+/- 60 degree
Accuracy:
< 0.3 degree (3 sigma)
Precision:
< 0.05 degree
Mass:
25 g
Power Supply:
5 V
Power Supply:
0-5V < 25 mA consumption
Dimensions:
40 x 30 x 12 mm
Material:
Aluminum 6082, Alodine + black anodized
Operating Temperature:
-45 C to 85C
Qualification:
Radiation, > 100 kRad
Qualification:
Random Vibration, 28.5 g @ 20-2000 Hz
Qualification:
Shock, 3000 g @1-100 ms
Documentation

Sun Sensor on a Chip (SSoC), is based on MEMS fabrication processes to achieve highly integrated sensing structures for high accurate sun-tracking, positioning systems and attitude determination.

SSOC-A60 device measures the incident angle of a sun ray in two axes. The high sensitivity is based on geometrical dimensions of the design. Every sensor is calibrated and characterized, and a look-up table is provided for its application. The use of a metal shield and a cover glass in the optical eye minimizes the ageing of the device under high radiation levels.
