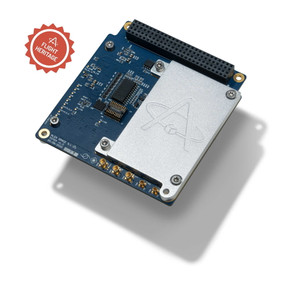

ISIS High Data Rate S-Band Transmitter motherboard from ISISpace - Orbital Transports SmallSat Catalog
Additional Information
Type:
Flight Hardware
Frequency Band:
2200 to 2290 MHz
Data Rate:
Up to 4.3 Mbps
Interface:
LVDS
Interface:
I2C
Documentation

The ISISpace High Data-rate S-band Transmitter is a CubeSat compatible Transmitter designed to meet the needs of high data-rate downlinks of up to 4.3 Mbps (usable information bit-rate at CCSDS transfer frame level). The transmitter can be used for both TT&C or PDT downlinks. The S-band transmitter is flexible, implementing CCSDS as data link layer protocol and allowing in-flight configuration of data-rate, modulation scheme, frequency, and RF output power.

  • Operates in EESS/SRS/SOS allocation band
  • CCSDS compliant
  • Data-rate and RF power re-configurable in-flight
  • RF power control loop to maintain constant RF power over the temperature range and Frequency band
  • SFCG Spectral mask compliant (Recommendation: SFCG-21-2R4)
  • Safety watchdog
  • Adjustable RF output power from 27 to 33dBm (0.5dB steps)
  • RF output tolerant to full mismatch



ISISpace High Data Rate S-Band Transmitter

ISISpace
Description

The ISISpace High Data-rate S-band Transmitter is a CubeSat compatible Transmitter designed to meet the needs of high data-rate downlinks of up to 4.3 Mbps (usable information bit-rate at CCSDS transfer frame level). The transmitter can be used for both TT&C or PDT downlinks. The S-band transmitter is flexible, implementing CCSDS as data link layer protocol and allowing in-flight configuration of data-rate, modulation scheme, frequency, and RF output power.

  • Operates in EESS/SRS/SOS allocation band
  • CCSDS compliant
  • Data-rate and RF power re-configurable in-flight
  • RF power control loop to maintain constant RF power over the temperature range and Frequency band
  • SFCG Spectral mask compliant (Recommendation: SFCG-21-2R4)
  • Safety watchdog
  • Adjustable RF output power from 27 to 33dBm (0.5dB steps)
  • RF output tolerant to full mismatch
