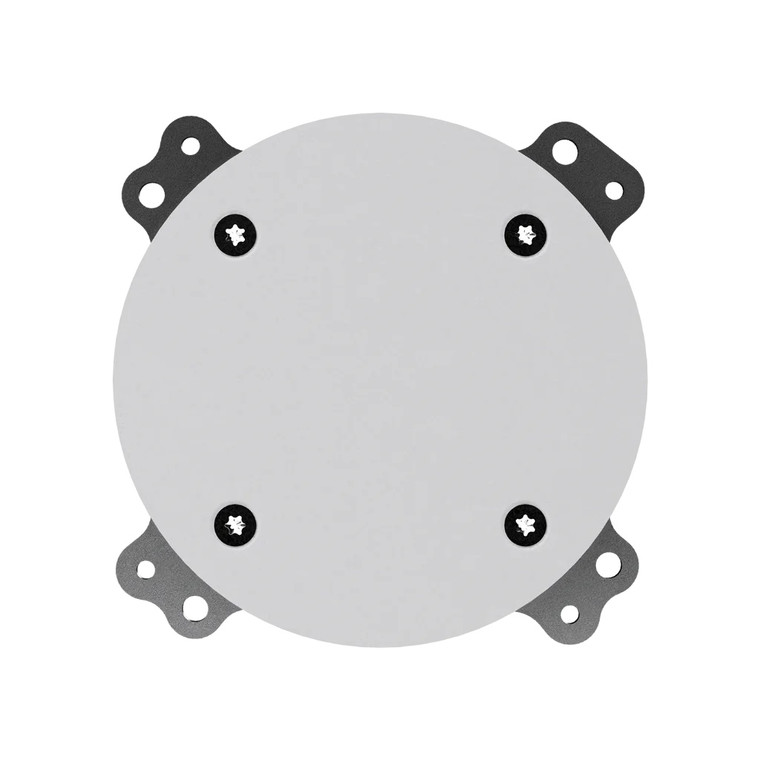

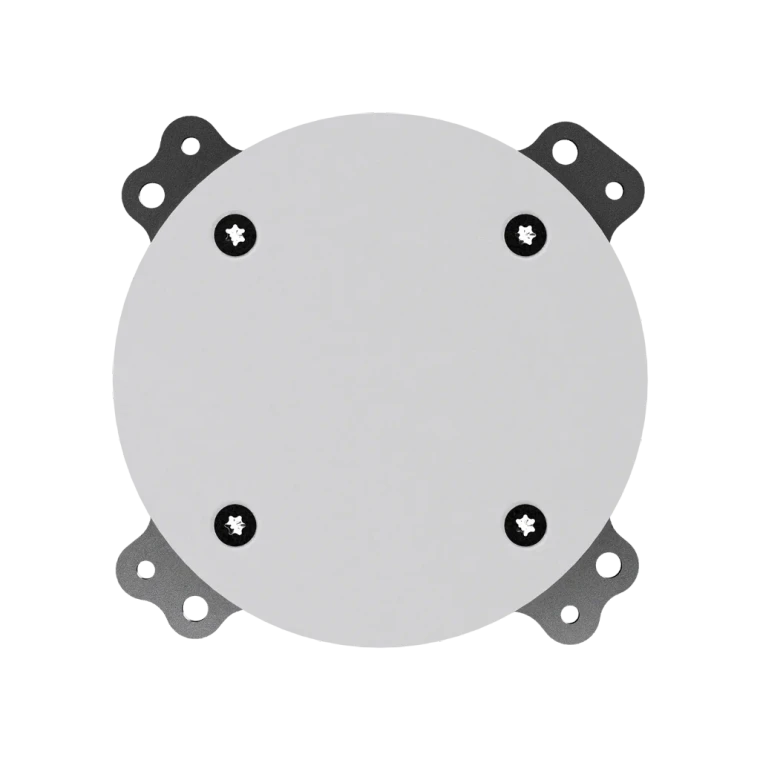

This Compact S-Band antenna is our latest antenna generation for telemetry, tracking & control. It is the optimized compact version of our previous S-Band TT&C Antenna. It differs from its predecessor with a dual-circular-polarization that can be used simultaneously on the dedicated connectors (SMAs or SMPs according to your needs). This S-Band antenna has successfully passed our qualification tests and is now ready to equip your satellites.
This new antenna has been optimized to better communicate anytime, anywhere! Anywaves Compact S-band TT&C antenna features excellent radiation characteristics over a wide frequency band. With a better gain and axial ratio at high elevation angles, you will collect more data, from your satellite or your payload during a pass over your ground station. This antenna brings to you more available and capacitive communication link.
This antenna can withstand harsh thermal environment thanks to a robust design based on our know-how and meca-thermal expertise.
NB : this antenna is compatible with Anywaves Test Cap for S-Band TT&C Antennas
Key Features
Parameter | Value |
---|---|
Lead Time | 3 months |
Frequency Range | 1.98 GHz to 2.29 GHz |
Bandwidth | > 310 MHz |
Polarization | Left Hand Circular Polarization |
Polarization | Right Hand Circular Polarization |
Power Handling | 20 W |
Half Power Beam Width | > 88 degrees (+/- 44 degrees in all planes) |
Dimentions | 70.9 x 70.9 x 9.78 mm^3 |
Protruding Height | 5 mm |
Mass | < 77 g (including connector) |
Connector | 2 x Coaxial SMP male (50Ω) or SMA female (50Ω) |
Mechanical Interface | 4x M3 (unthreaded hole) |
Qualification Temperature | -120C to +120C |
Regulatory | ITAR Free |
